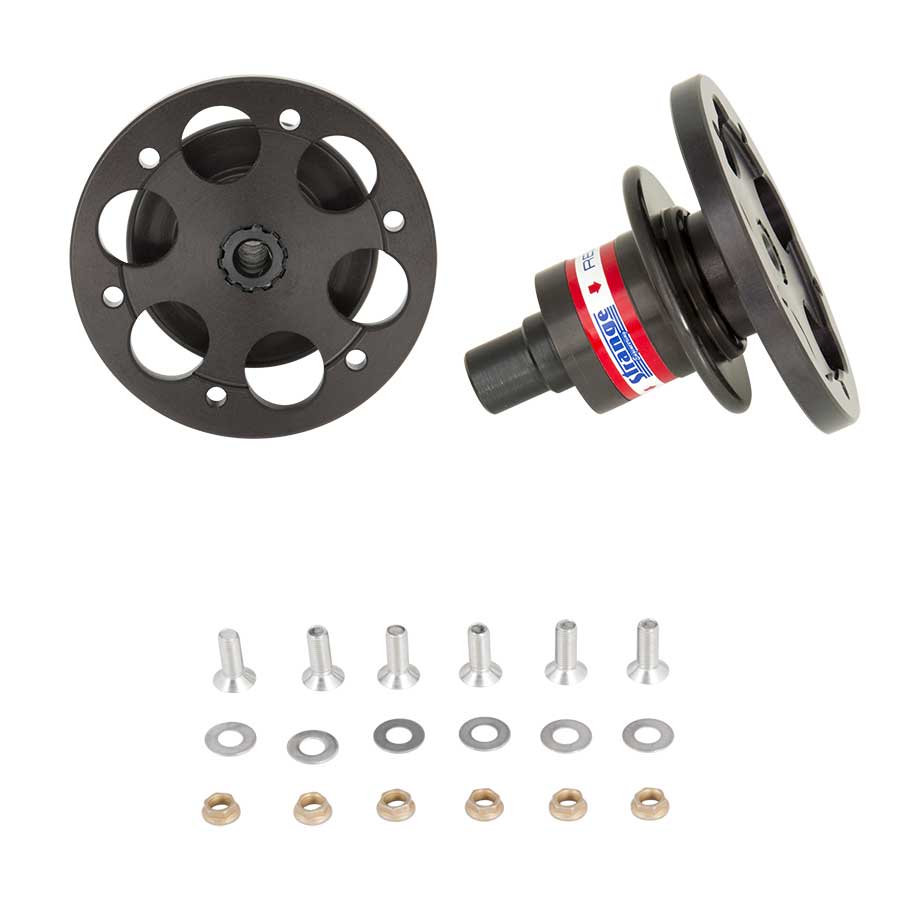

Strange Quick Release Hub Designed For Sparco Steering Wheels (No Button)

Application
Sparco steering wheels
With six bolt hole pattern

Features
• Provides quick removal of steering wheel
• Integral flange eliminates loose components
• Spring loaded with positive locking system
• Coarse spline simplifies engagement
• One wide tooth ensures proper steering wheel alignment

Hub
2024-T351 billet aluminum
3.500″ OD
6 on 2.756″ bolt circle .192″ holes
.750″ lightening holes
Broach 10 spline with one tooth removed
Black hard anodized finish

Release Collar
6061-T6511 billet aluminum
2.480″ OD
Black hard anodized finish

Weld End
4130 chrome moly
9 spline with one wide tooth
.650″ OD tube end
.312″ bore lightening hole
Black oxide finish
