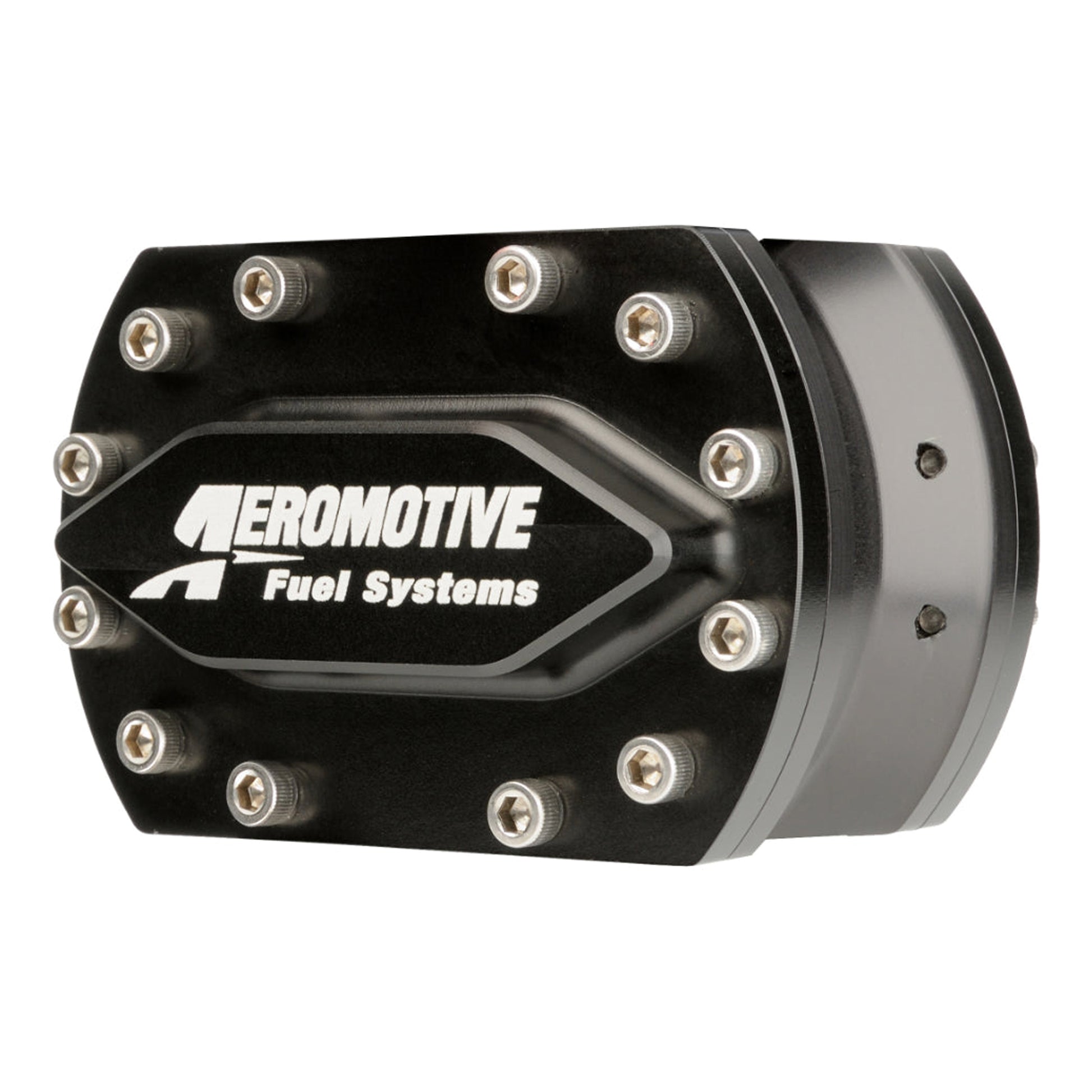

Spur Gear Fuel Pump

Aeromotive's Spur Gear fuel pumps are their latest and largest gear pumps. They feature contoured and coated bodies, thrust plates, and gear sets—to reduce cavitation and increase longevity. The pumps have undergone extreme testing in professional Funny Cars to Pro Mod cars, along with serious research and development to ensure the utmost performance and reliability in the harshest environments. Aeromotive Spur Gear fuel pumps are built to the strictest of standards, utilizing steel or billet aluminum, and they're available in a complete range of flow ratings, as well as NHRA/IHRA certifiable options.

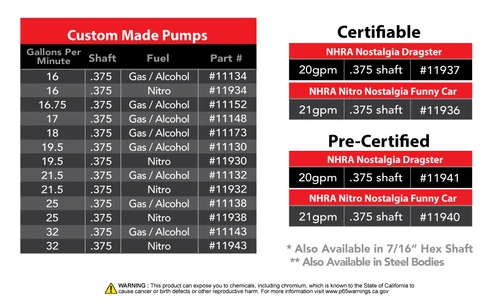

• Flow ratings from 16 – 32 gallons per minute
• 3/8″ or 7/16″ hex shaft diameter
• Gas/alcohol or Nitro applications available
• Hard coat anodized aluminum or steel body
• Mount with 3 (or) 4 bolt flange, or V-band clamp
• Variety of distribution blocks, inlet/outlet, and shut-off valve options for custom configuration
• NHRA certifiable
• This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.
