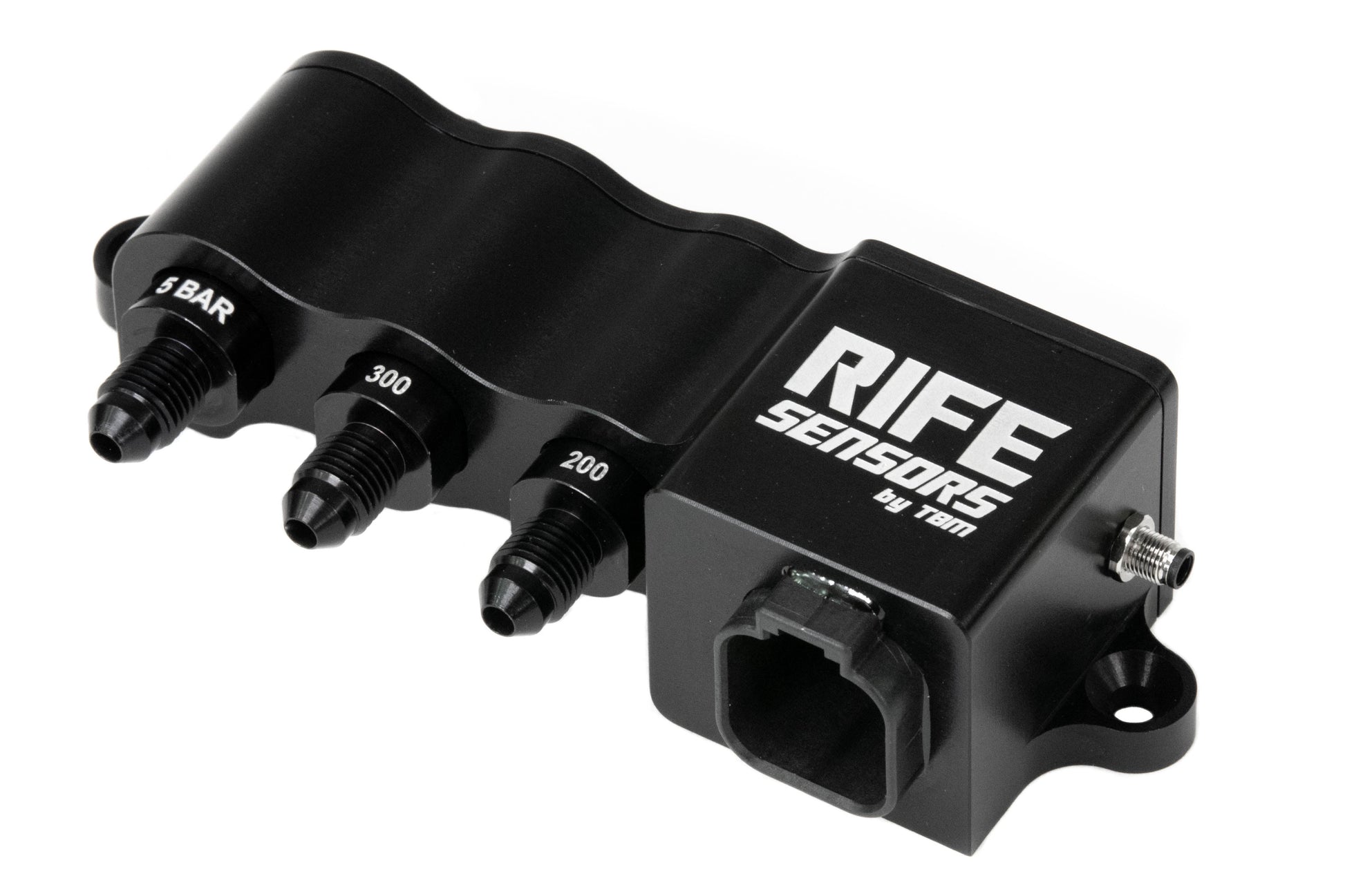

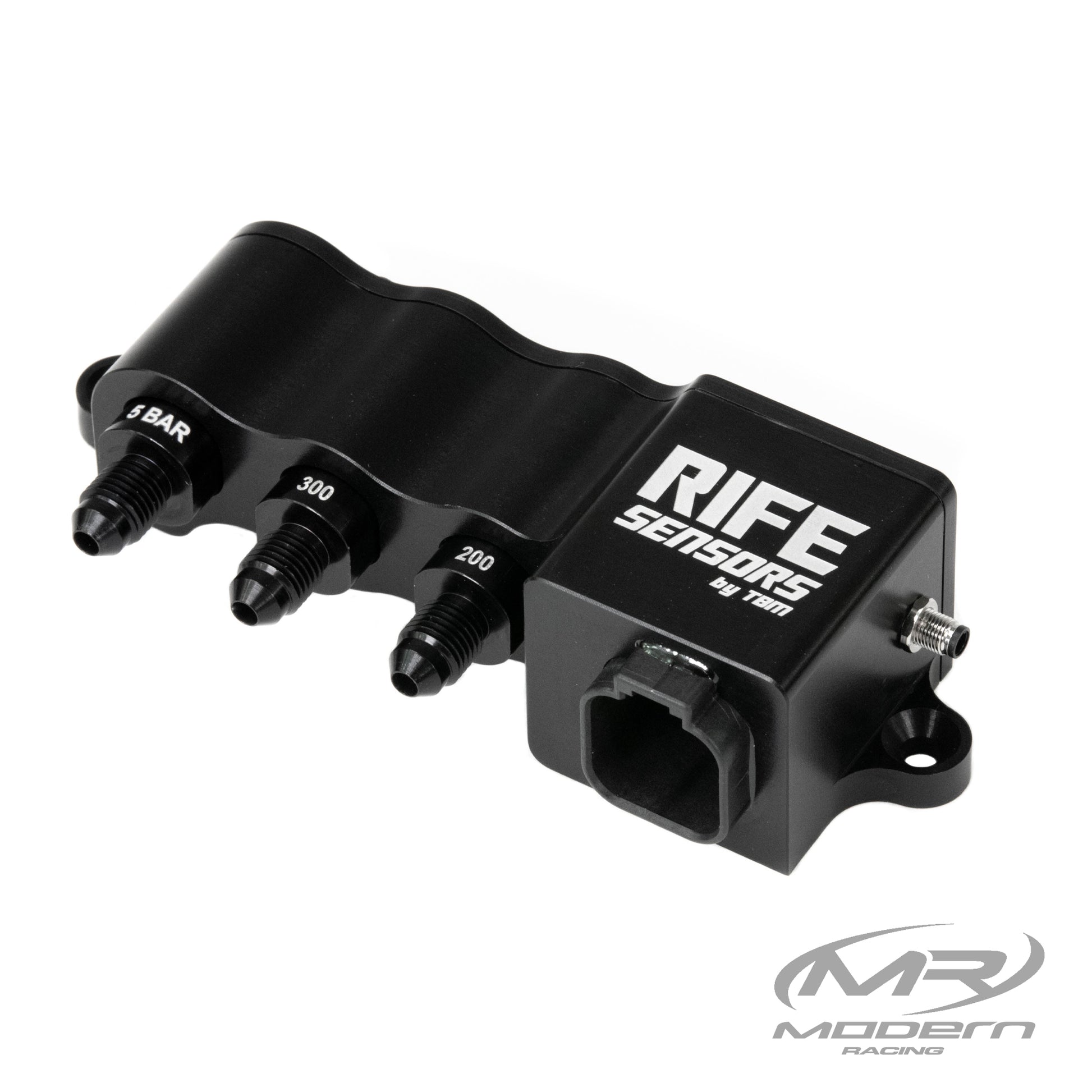

RIFE Triple Sensor Block + 1 M5 Input (Choose Your Sensors)

With purchasing this pre-assembled RIFE block, one of our Modern Racing team members will reach out to discuss your sensors options. After confirming your desired sensor layout, we will assemble your custom block in-house.

RIFE Triple Sensor Block + 1 M5 Expander (Choose Sensors)

Features

• Vibration isolated sensors
• 3 Built in Pressure/MAP sensors (Choose below)
• 1 expandable M5 input for external 3 wire 5v sensor
• -3 AN Male or 1/8" NPT Female connections
• Automotive Grade Deutsch DT connectors
• Sealed to IP69
• Billet aluminum construction
• Available in 1, 2, 3, or 4 sensor packages
• Custom configurations available
• Snubbers available to reduce damaging pressure spikes*
• Industry standard 0-5V output
• Compatible with all ECU’s/data loggers**
• Reduced wiring clutter
• Higher accuracy
• Faster response
• Flexible mounting options
• All wetted parts are 316 stainless, Viton or anodized aluminum
• 1 Bar, 2 bar 3 Bar, 5 Bar, 7 Bar, 10 Bar MAP sensors
• 60psi, 100psi, 150psi, 200psi, 300psi, 500psi, 1600psi

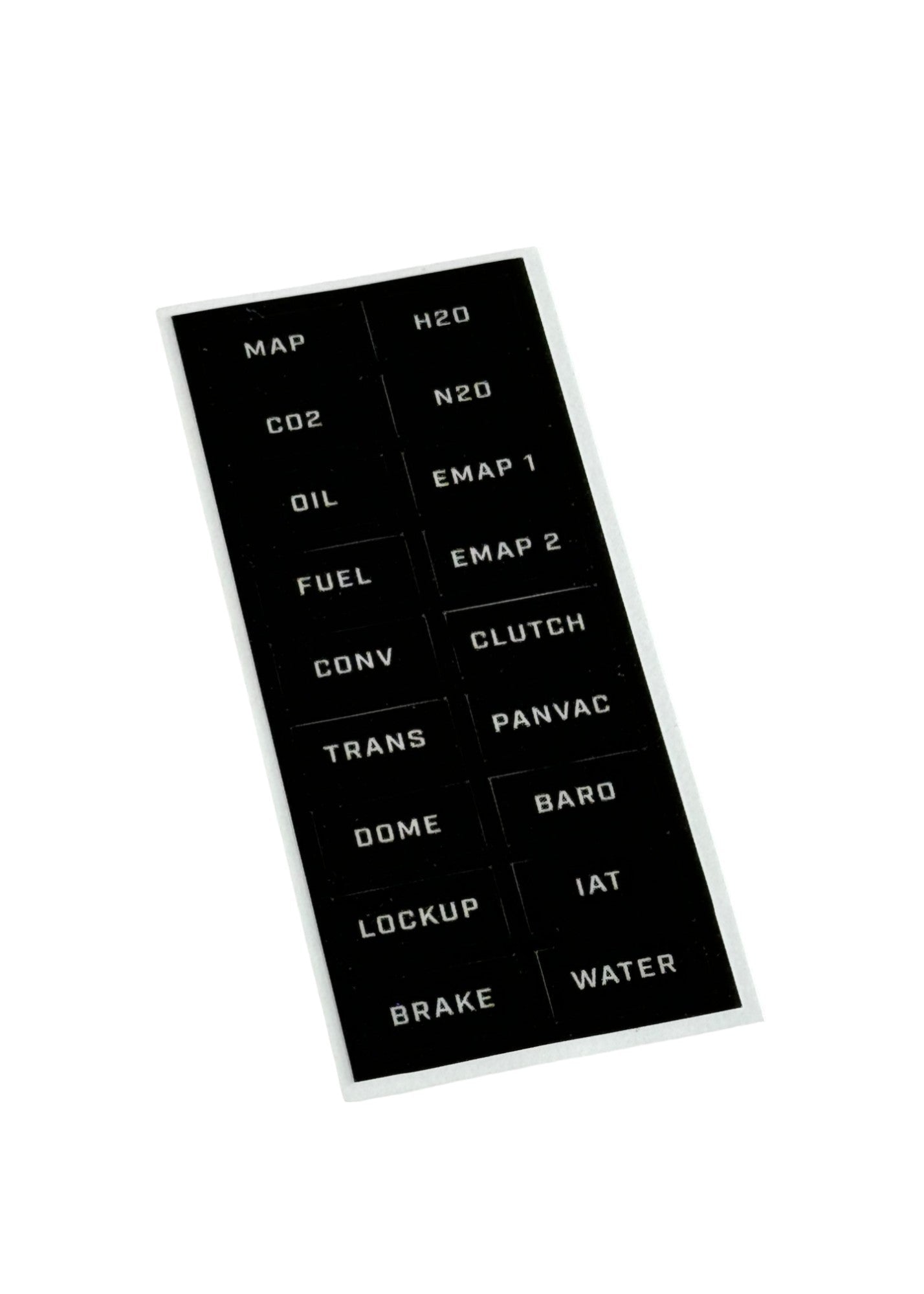

• Includes Label Sheet

*Note: Unlike most Motion Raceworks family of products, these sensors like most electronics are not 100% Made in the USA. While we diligently attempt to source all US electronic components, we have not been able to source everything domestically.

*Does not include harness.

Watch this video on the internals and the unique features of this sensor solution!
