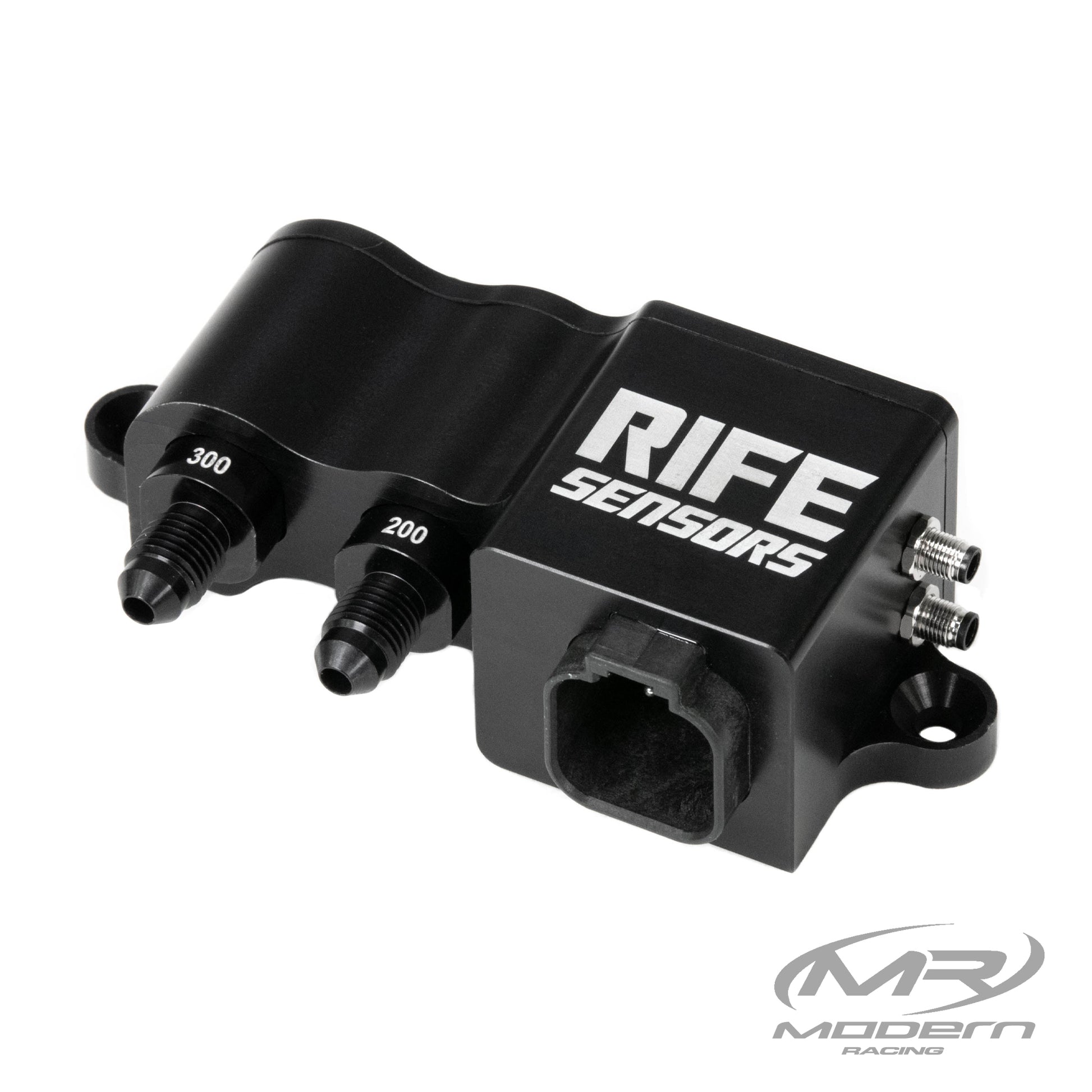

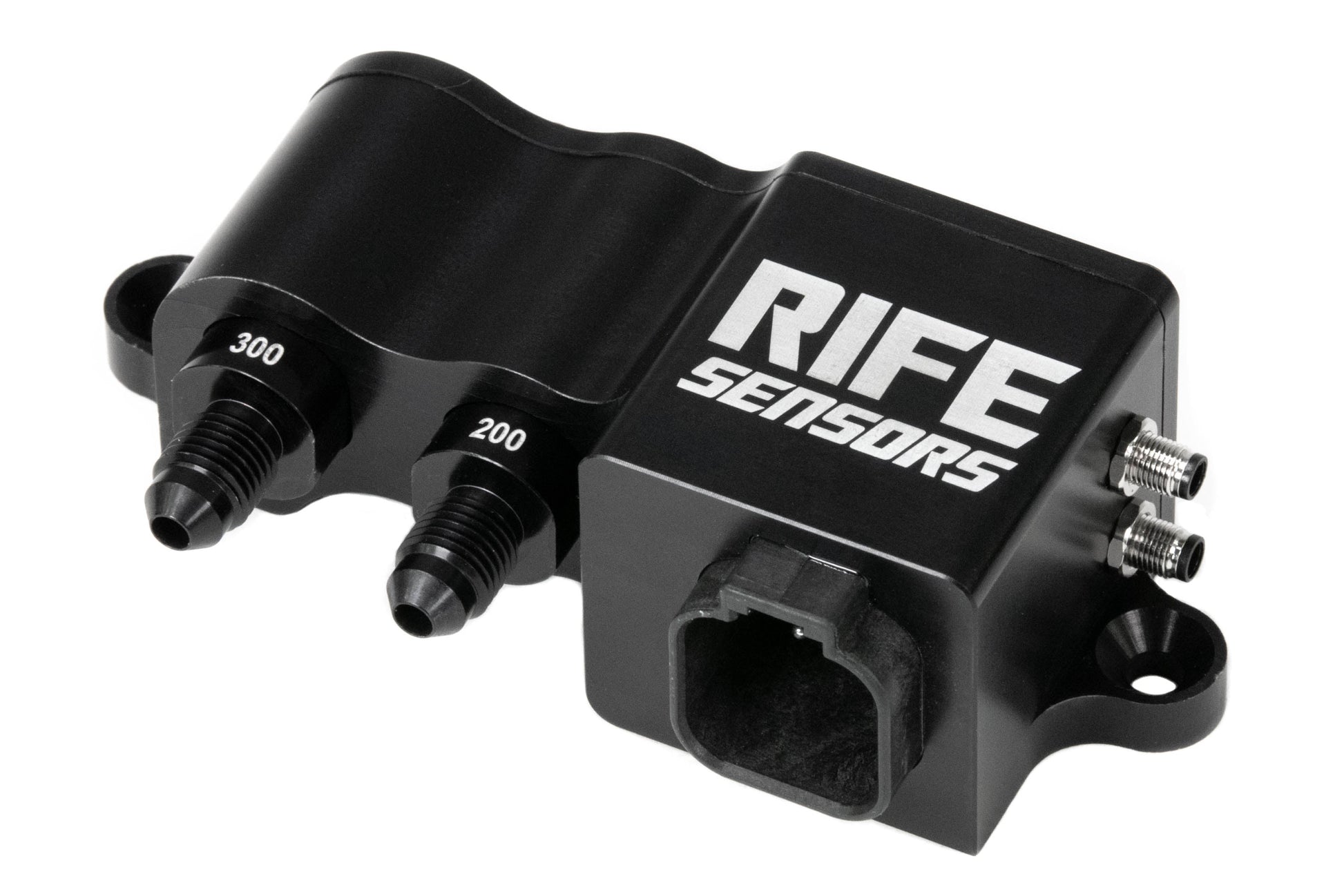

RIFE Double Sensor Block + 2 M5 Inputs (Choose Your Sensors)

With purchasing this pre-assembled RIFE block, one of our Modern Racing team members will reach out to discuss your sensors options. After confirming your desired sensor layout, we will assemble your custom block in-house.

RIFE Double Sensor Block + 2 M5 Inputs (Choose Sensors)

2 Pressure/MAP Sensors, 2 expandable M5 inputs, one wiring plug

These are built to order for your specific vehicle

This block includes 3 additional Analog inputs! These side mounted M5 analog inputs can be used for connecting any 0-5V analog sensor or Temperature sensor. 5V and sensor ground are supplied through connector

RIFE Sensor Blocks Feature:

• 2 Built in Pressure/MAP Sensors (Choose sensors and Thread Style in Options)

• 2 expandable M5 inputs for external 3 wire 5v sensor
• Higher accuracy
• Faster response
• One distributed sensor Ground feeds up to 4 sensors
• One distributed sensor Power feeds up to 4 sensors
• Sensor Power/Ground are circuit protected
• Dual Vibration isolated sensors
• Choose -3 AN Male or 1/8" NPT Female connections

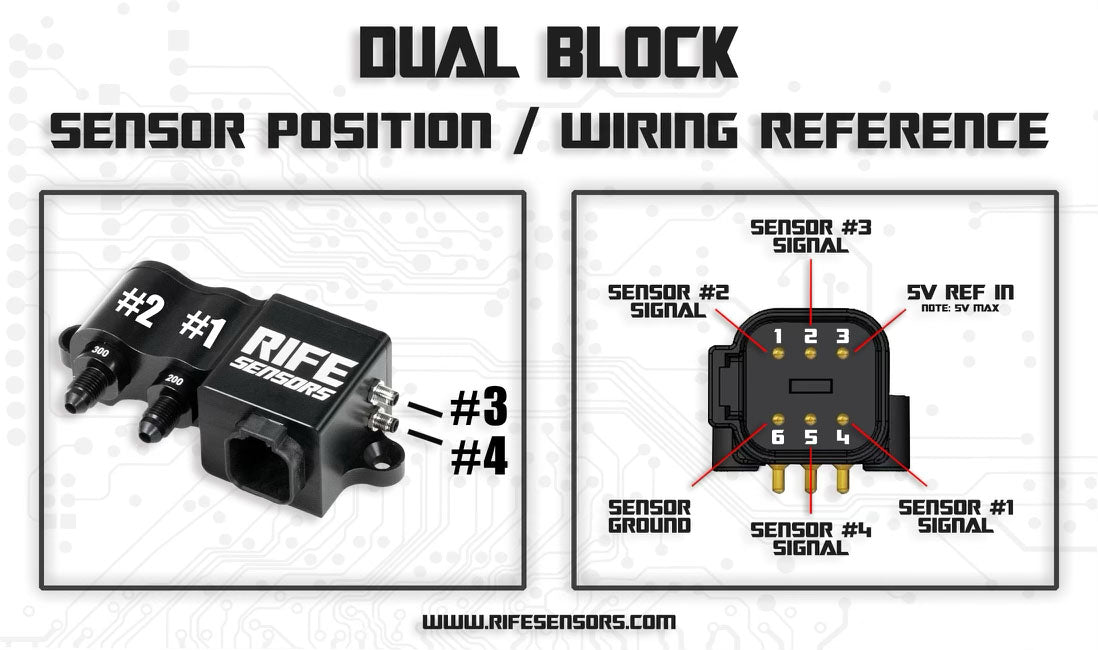

• Deutsch DT 6 pin connector
• Sealed to IP69
• Billet aluminum construction
• Sensors Utilize Industry standard 0-5V output
• Compatible with all ECU’s/data loggers
• Flexible mounting options
• All wetted parts are 316 stainless, Viton or anodized aluminum
• 1 Bar, 2 bar, 3 Bar, 4 Bar, 5 Bar, 7 Bar, 10 Bar MAP sensors
• 60psi, 100psi, 150psi, 200psi, 300psi, 500psi, 1600psi
• Compatible with Oil, Fuel (Gasoline and Methanol), Transmission Fluid, CO2, Compressed Air, Water, Coolant and more!

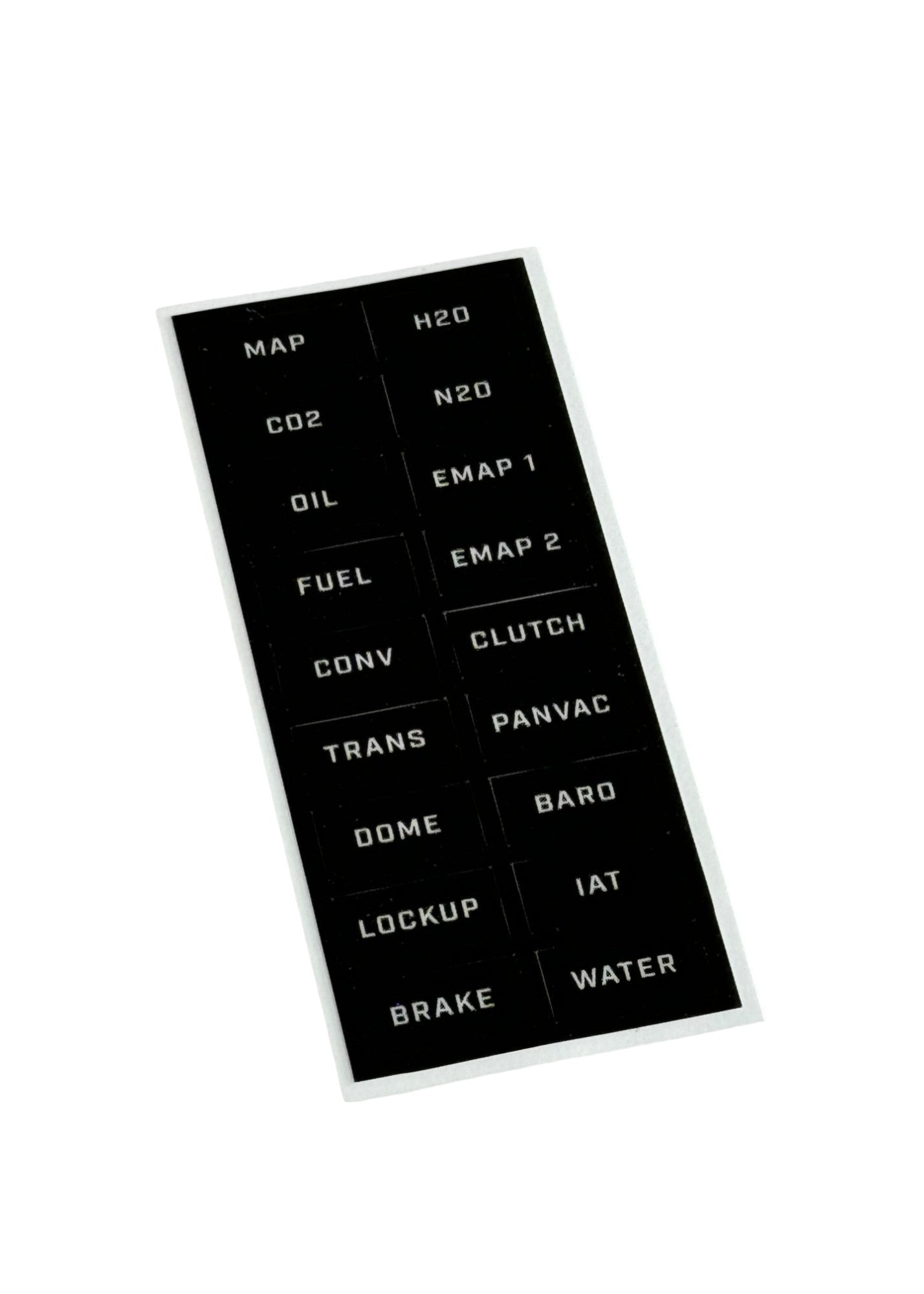

• Includes Label Sheet

• *Does not include harness. Click here to order the harness

  For replacement sensor pods: Click Here

  For M5 Cable Options: Click Here

   *Note: Unlike most Motion Raceworks family of products, these sensors like most electronics are not 100% Made in the USA. While we diligently attempt to source all US electronic components, we have not been able to source everything domestically.

For Sensor Scaling Data: Click Here

Watch this video on the internals and the unique features of this sensor solution!

Learn how to swap sensors in your RIFE block
