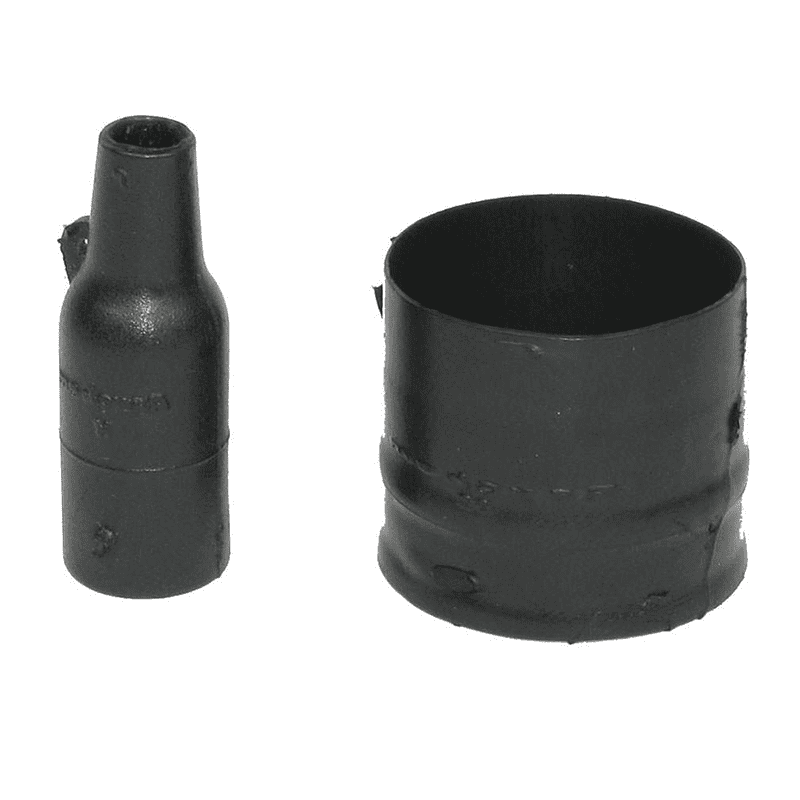

Raychem Heat Shrink Boot 202K121

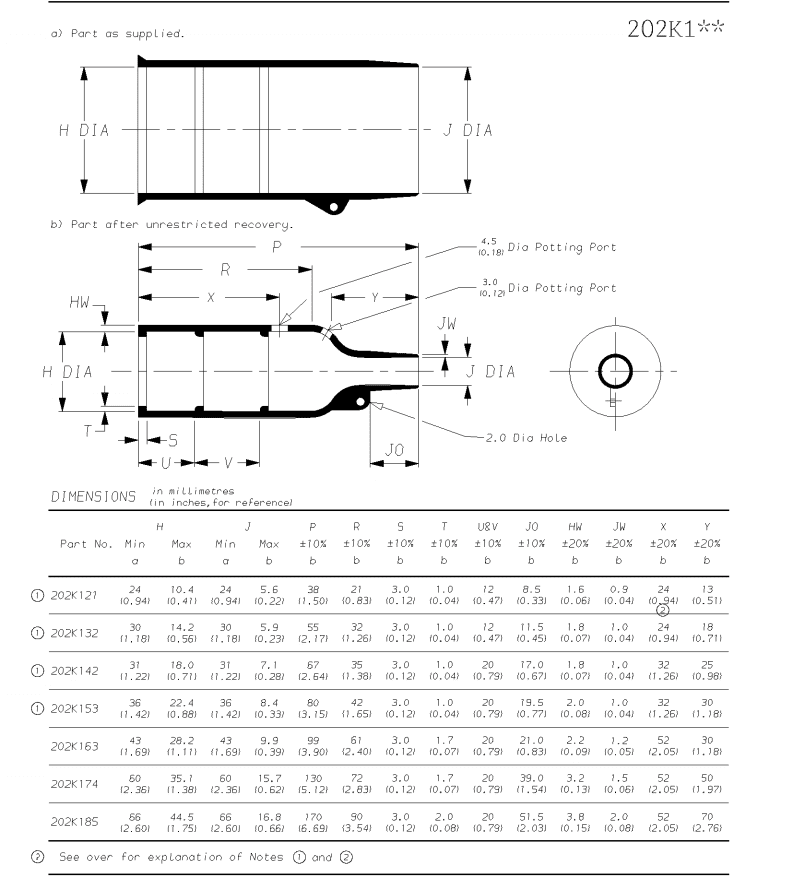

REFER TO DATA SHEET FOR SIZING

The 202k series are modified elastomeric heat shrink boots. These are designed in such a way that can be used in conjunction with other components such as DR-25 tubing and S1125 adhesive providing a complete cable harness system capability. 202k1 series products are specifically designed to provide optimum high-temperature fluid resistance and long term heat resistance. These features make it suitable for sealing and strain relief at connector-cable terminations and cable to cable transitions on military vehicle cables and harnesses.

Material used fluid-resistant modified Elastomer
Excellent resistance to high temperature fluids
Resistance to long term exposure at elevated temperatures
Operating temperature range from -75°C to 150°C
Parts will shrink on the application of heat above 135°C
Recommended installation temperature 175°C
