*These items are custom and built-to-order. Please allow 20-40 business days for completion and processing.*
Are you converting your ProMod to a ProCharger? Let us help you win races. Introducing the Modern Racing 7-Gallon Fuel Cell for ProCharger ProMods.
Modern Racing completed one of the first NHRA ProCharger conversions last season. The Elite Motorsports ProMod driven by Clint Hairston and Steve Matusek was used for exhibition passes at select dates. Now, ProChargers are accepted for competitive use in the NHRA ProMod series beginning this 2020 season.
Since this past winter, Modern Racing has completed other NHRA ProCharger conversions. With this first-hand experience, Modern Racing has developed components to make your swap quick and easy—getting you back to the podium.

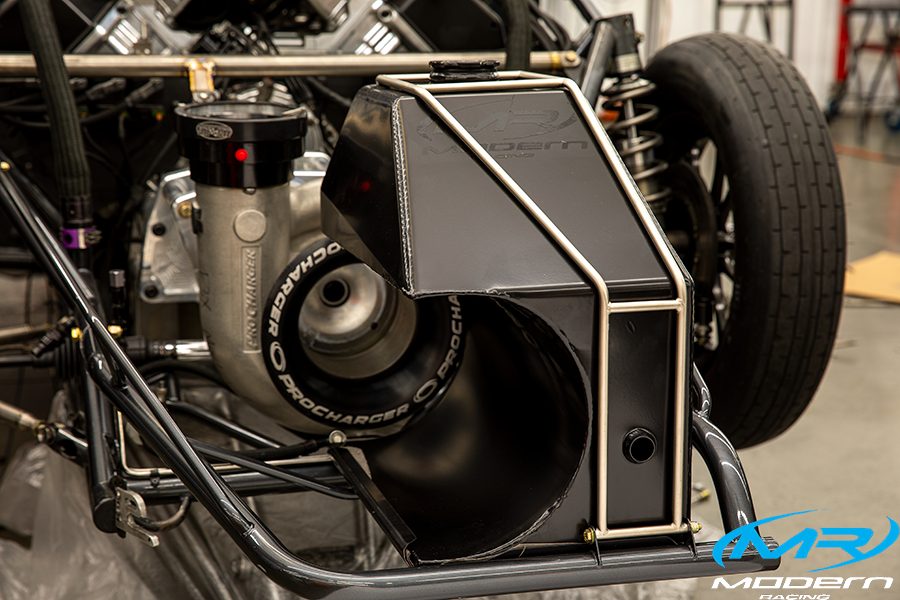

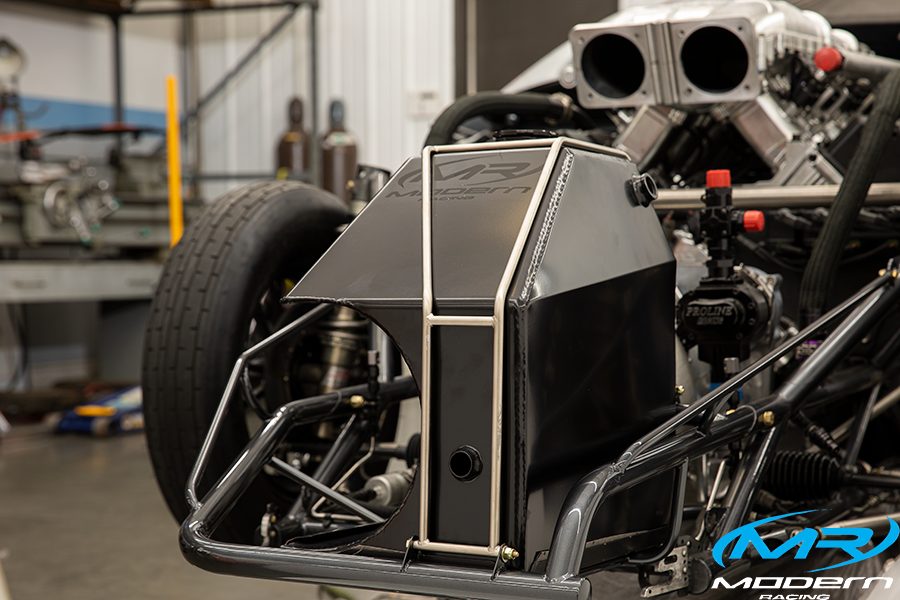

Our custom ProCharger Fuel Cells are proven and tested to work with ProCharger F3R, X-140, or similar head units (part number PC314A-140/PC316A-140), providing ample airflow and fuel capacity (7 gallons). All in-house ProCharger conversions use this tank.

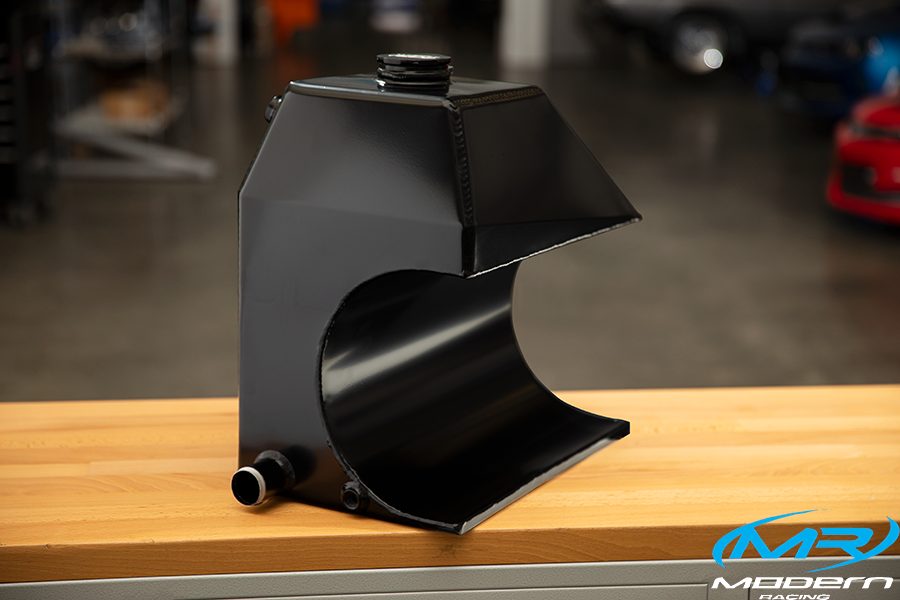

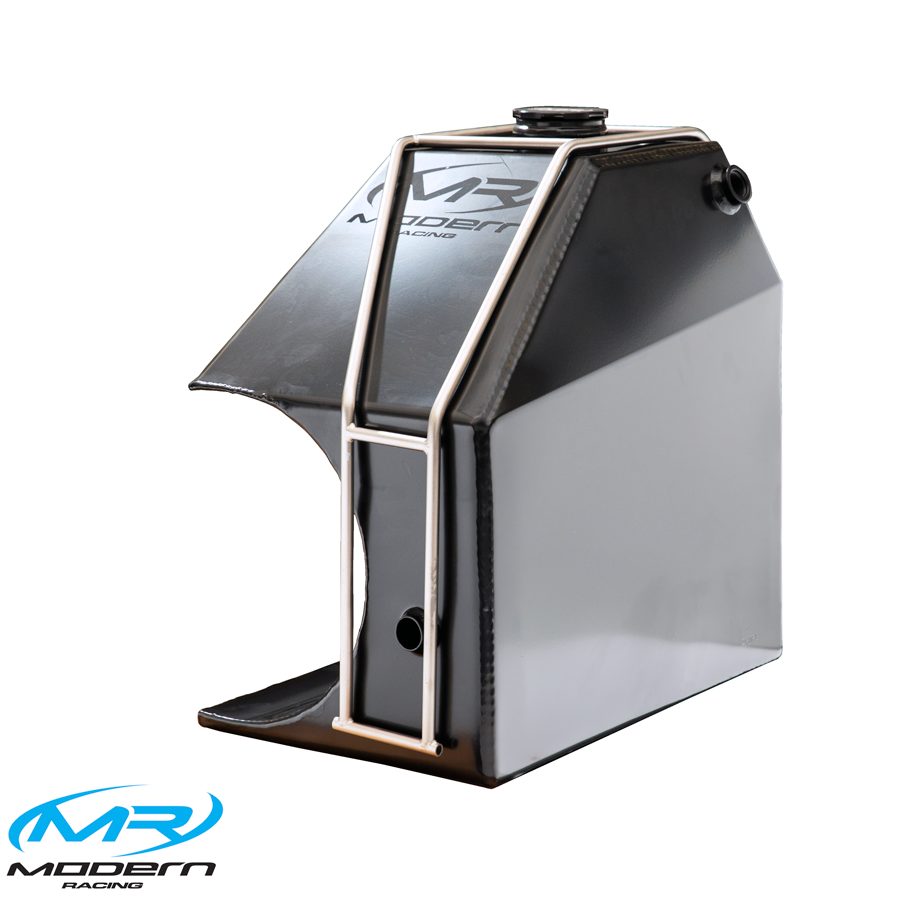

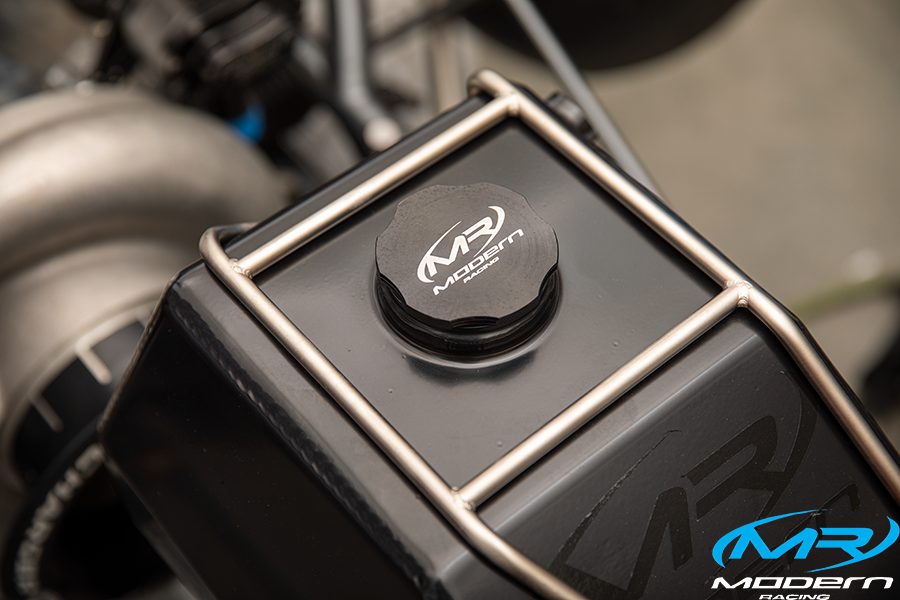

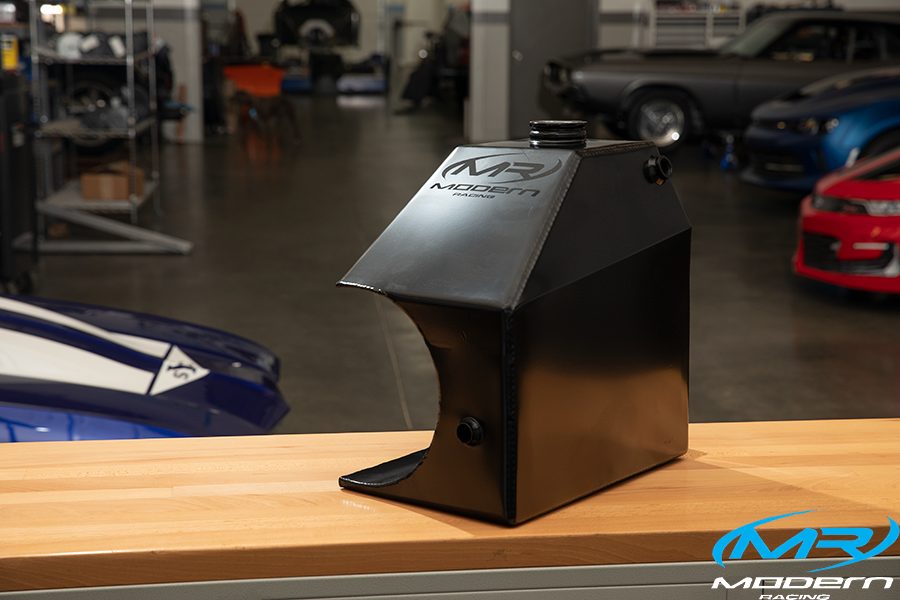

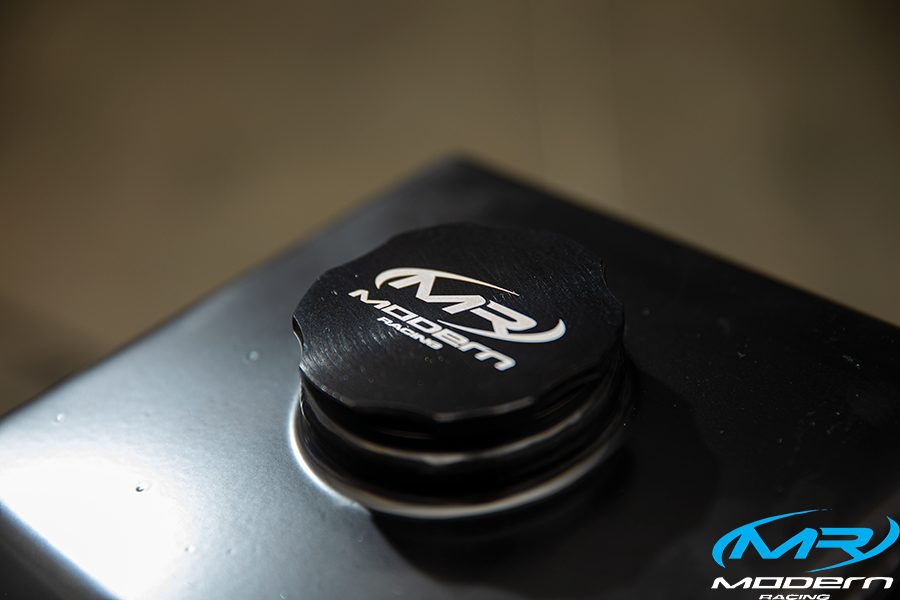

Modern Racing strives itself on quality work, that wins championships—not just races. The tanks are anodized black for a tough, abrasion-resistant coating and superior look. A billet cap, with the Modern Racing laser-etched logo, is included. We purposely designed the height and shape of the tank to reduce turbulence of the fuel. Also, an internal vent keeps fuel from splashing out on the track.

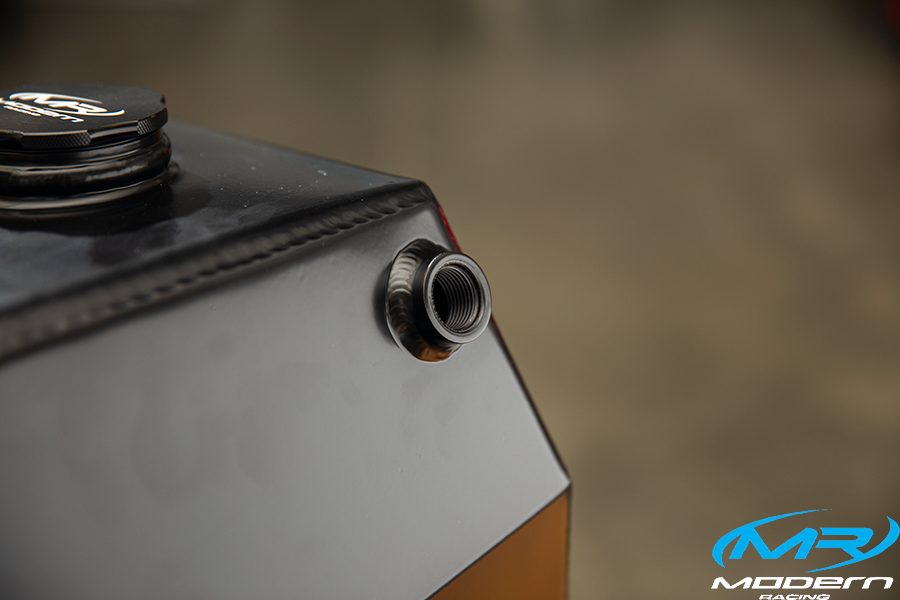

The tank features a 1.5 inch outlet, -10AN return, and a -6AN at the bottom designed for a primer pump (UPDATE: Our newest design {Not pictured} utilizes a -20 female port for fuel, with twin -12 female ports for returns, and a -6 female port for a primer pump. We can build to original design specs, per request). Mounting bracket not included. Interested in a custom mounting bracket or custom tank? Custom main lines are available on request. Please email us for a quote: Info@ModernRacing.net

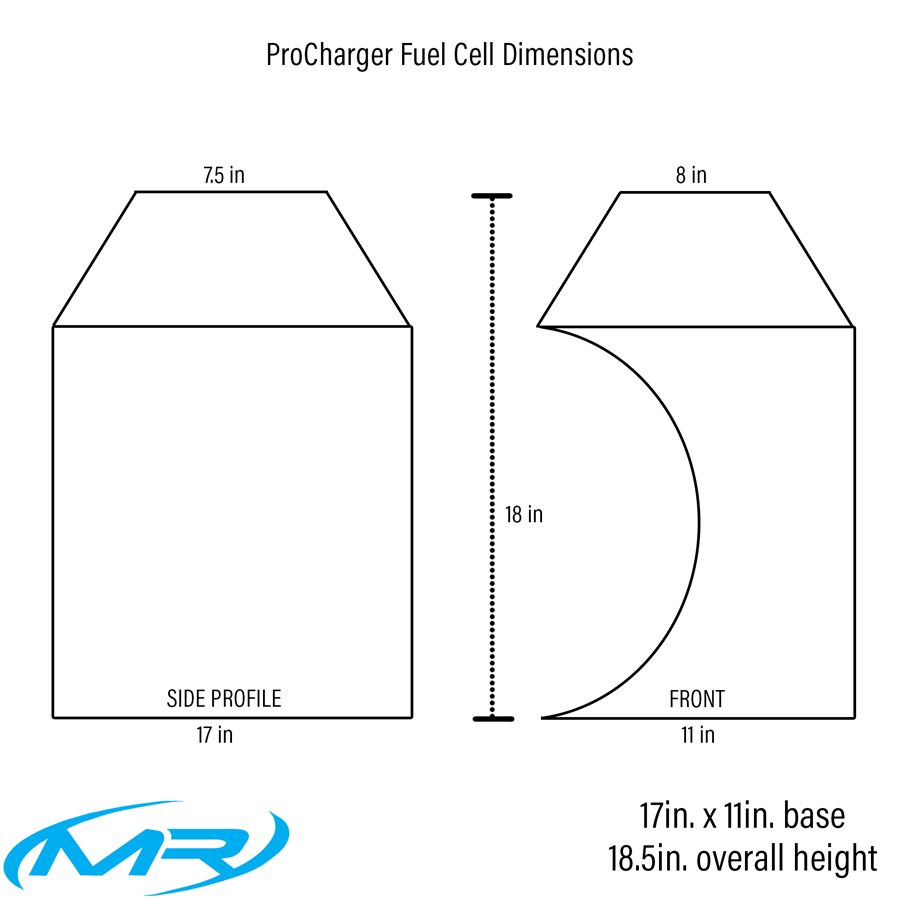

Dimensions: 17" Depth x 11" Width x 18.5" Height, 10" Diameter
*Due to size, extra shipping charges will be applied at checkout. International customers: Please reach out to a sales associate for an accurate shipping quote before completing your order.*
