For those looking for minimal installation time and effort involved, we're happy to introduce to you our MR Installer Series 11-Channel Input Hub Harness . This kit revolves around our MR 11-Channel Input Hub, eliminating the need for endless splicing and hours of headaches for the typical DIY’er. Wiring the 11-channel hub expander is as simple as occupying your ECU connector, then running and terminating your sensor leads! It's really that easy.

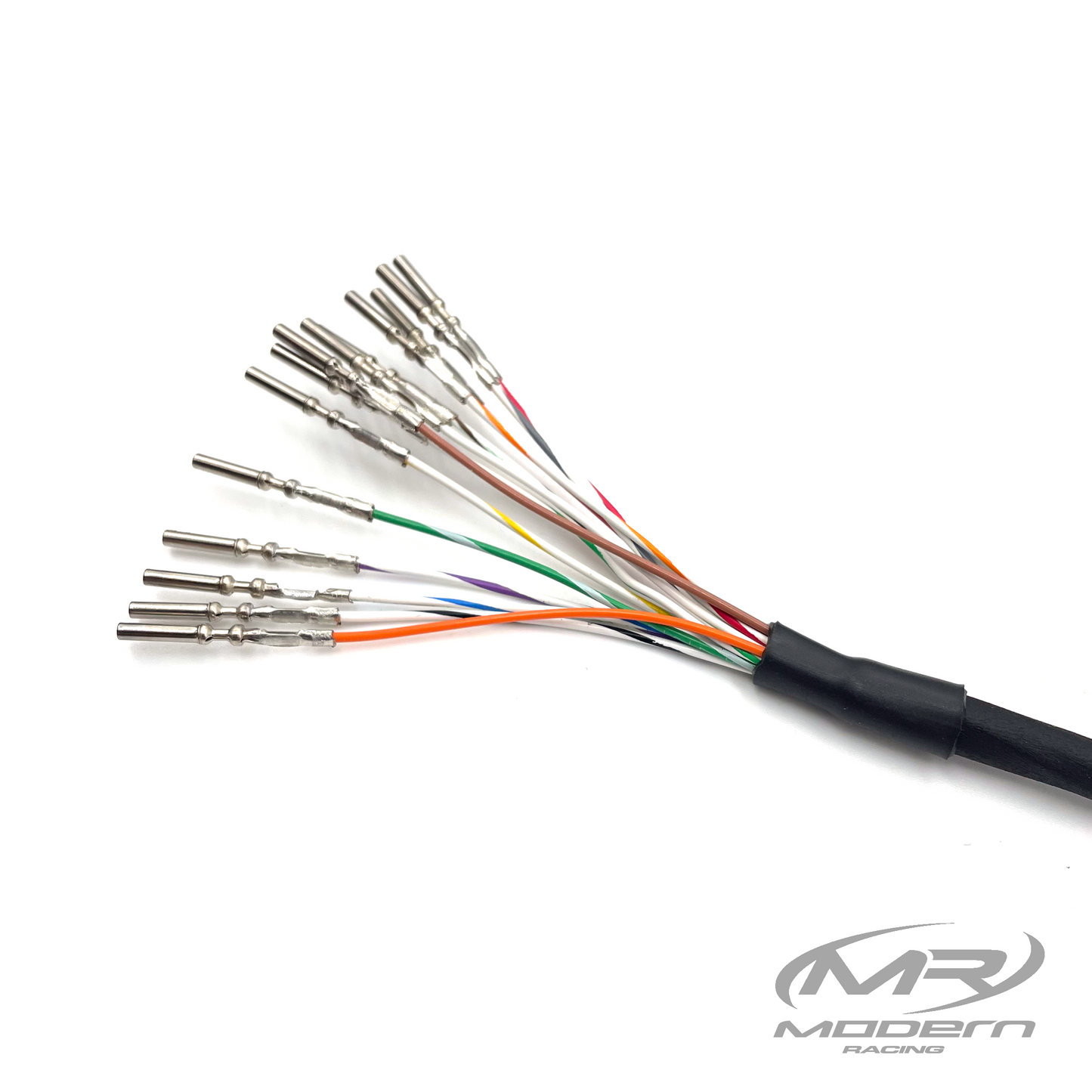

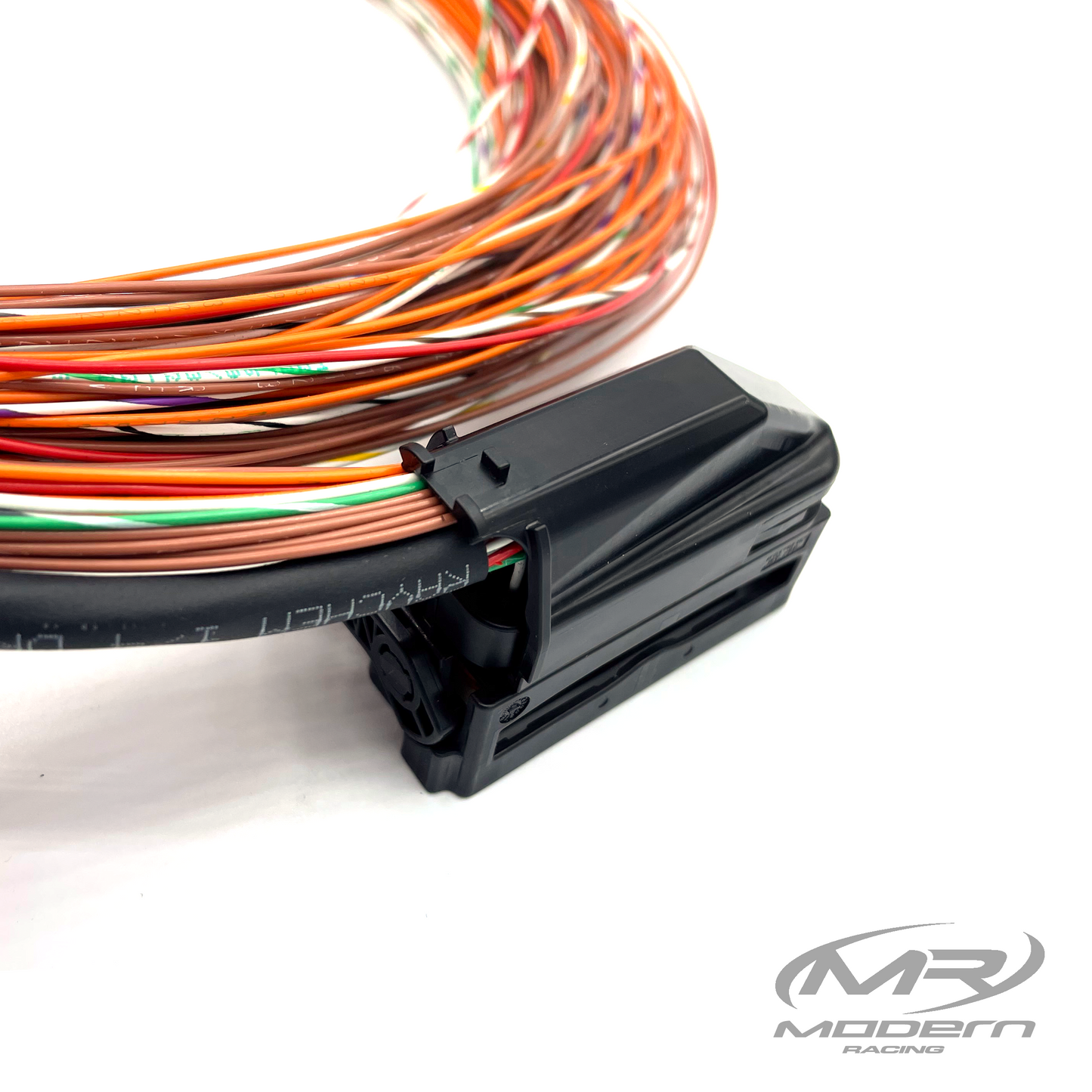

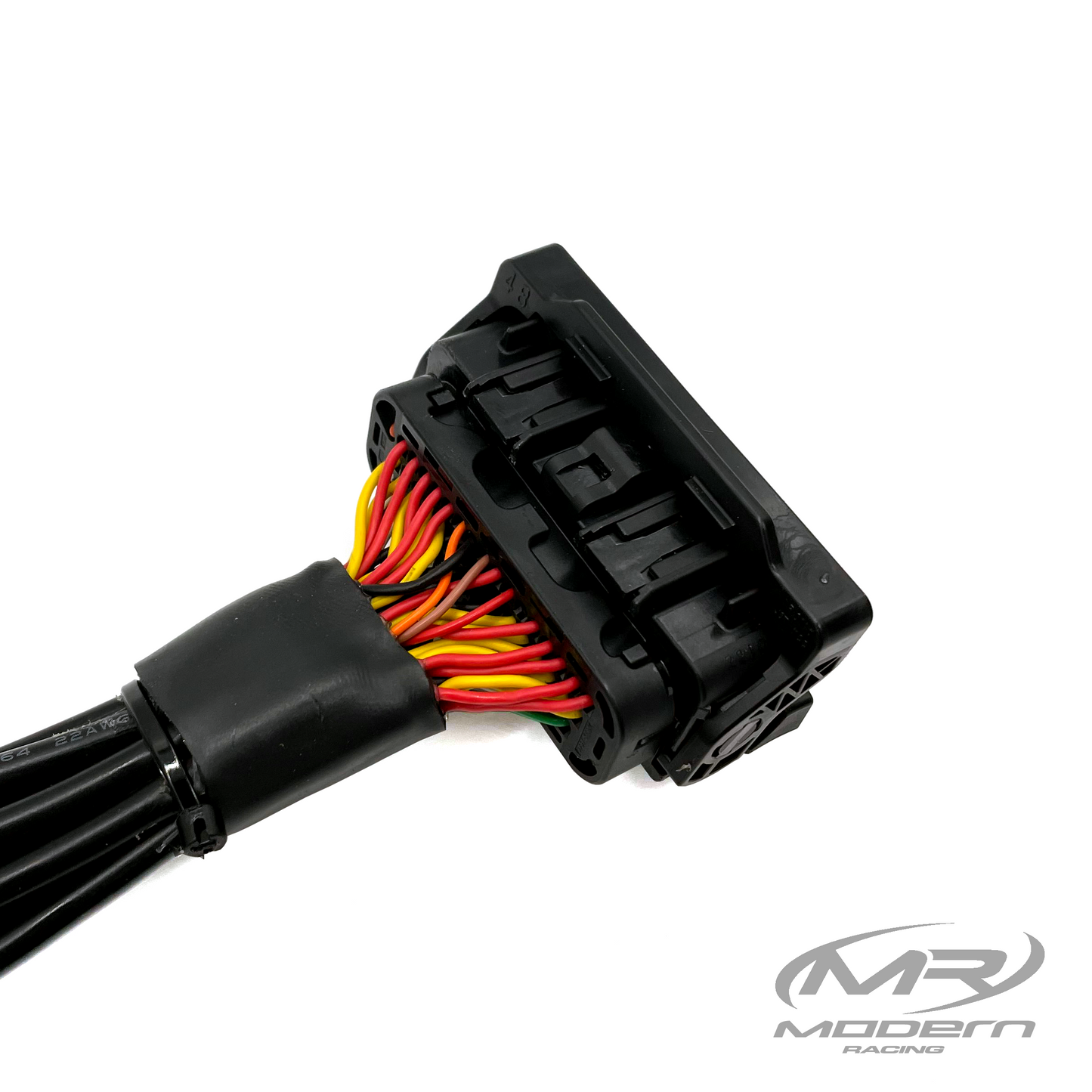

To get more in depth; Each kit comes with a pre-terminated harness for your ECU that's been sleeved with Raychem DR-25 heat shrink, as well as an unterminated 9' harness (Your choice of either 22AWG Mil-spec wire or 22AWG unshielded PVC jacketed 3-conductor wire). Already pre-terminated and occupied on the hub-side, all that’s left to do is run wire to your desired sensors and terminate with the proper connector. To make it more customizable to your exact build, both styles are offered in two layouts:

-10x 0-5V supplies and 1x 12v (flex) supply

-9x 0-5V supplies and 2x 12v (flex) supplies

Be sure to check out our connector section and fill up on the connectors you'll need to finish your project.

SPECS AND FITMENT:

-Body Style: Universal unterminated

HIGHLIGHTS:

-Lightweight

-Universal application

-Easy solution to excessive wiring and splicing

-Pre-terminated ECU harness

-9' harness For 11-inputs

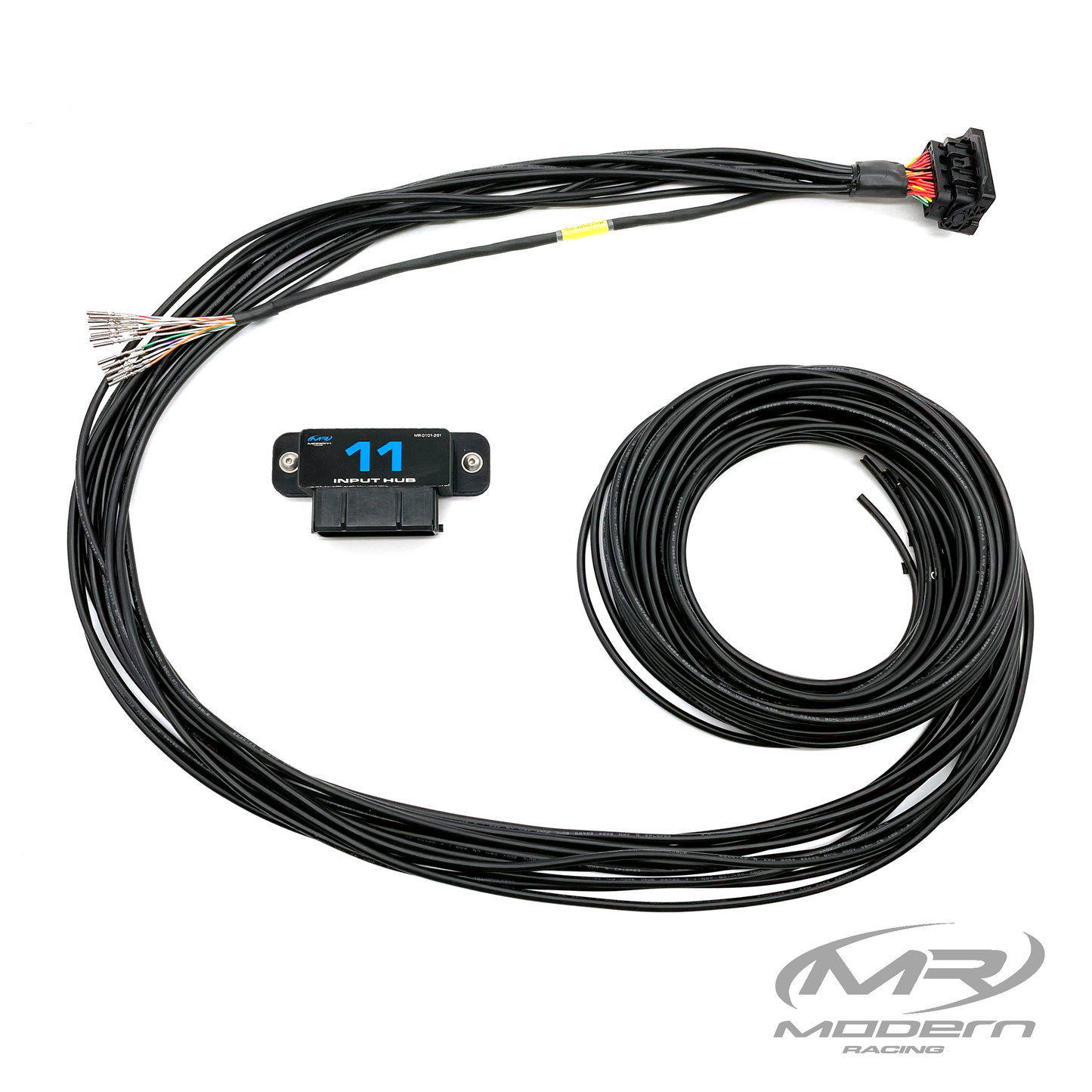

JACKETED 3-CONDUCTOR WIRE PACKAGE CONTENTS:

-(1x) Input hub

-(1x) Mating connector w/wiring harness (Made with unshielded PVC jacketed 22awg 3-conductor wire)

-(1x) Mounting hardware kit

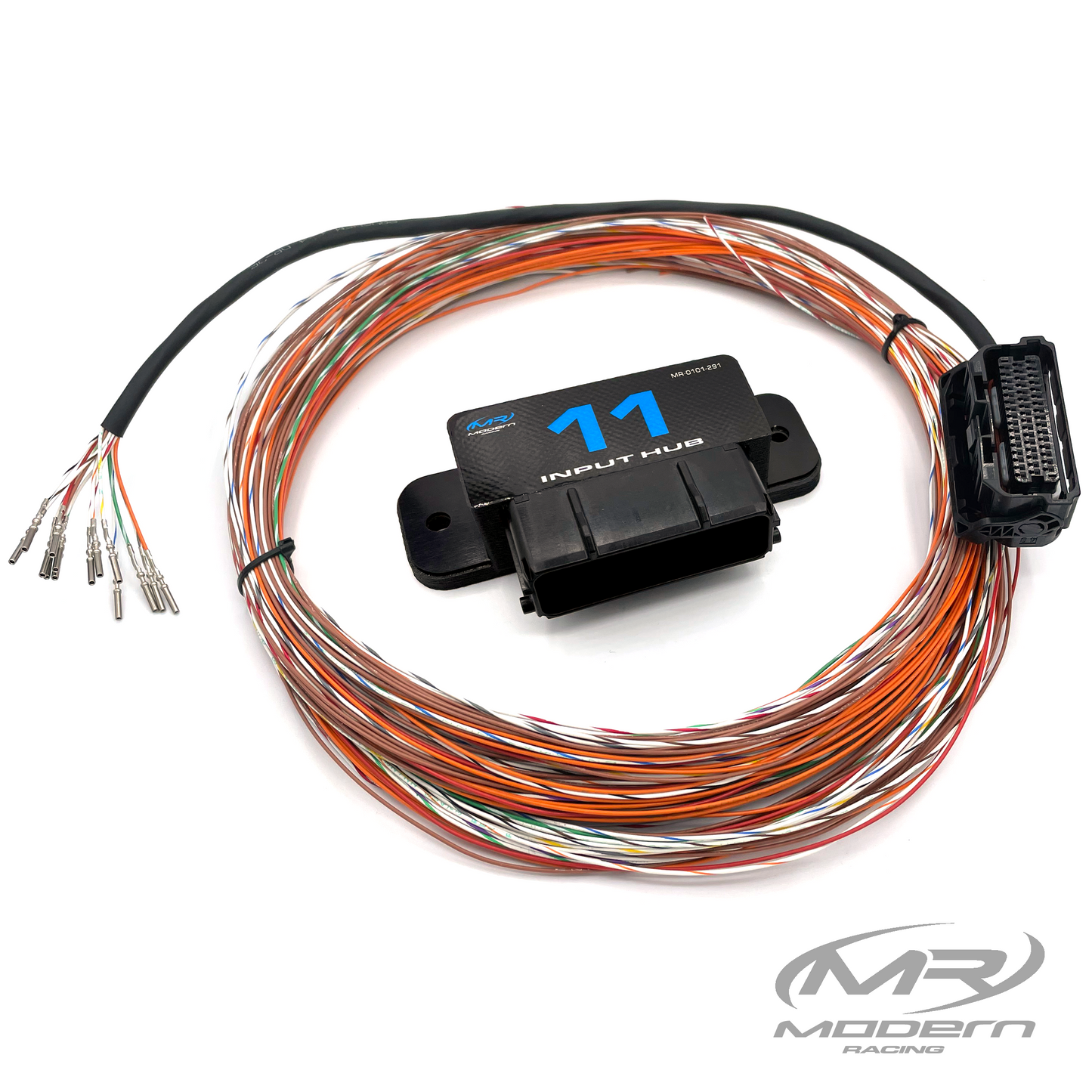

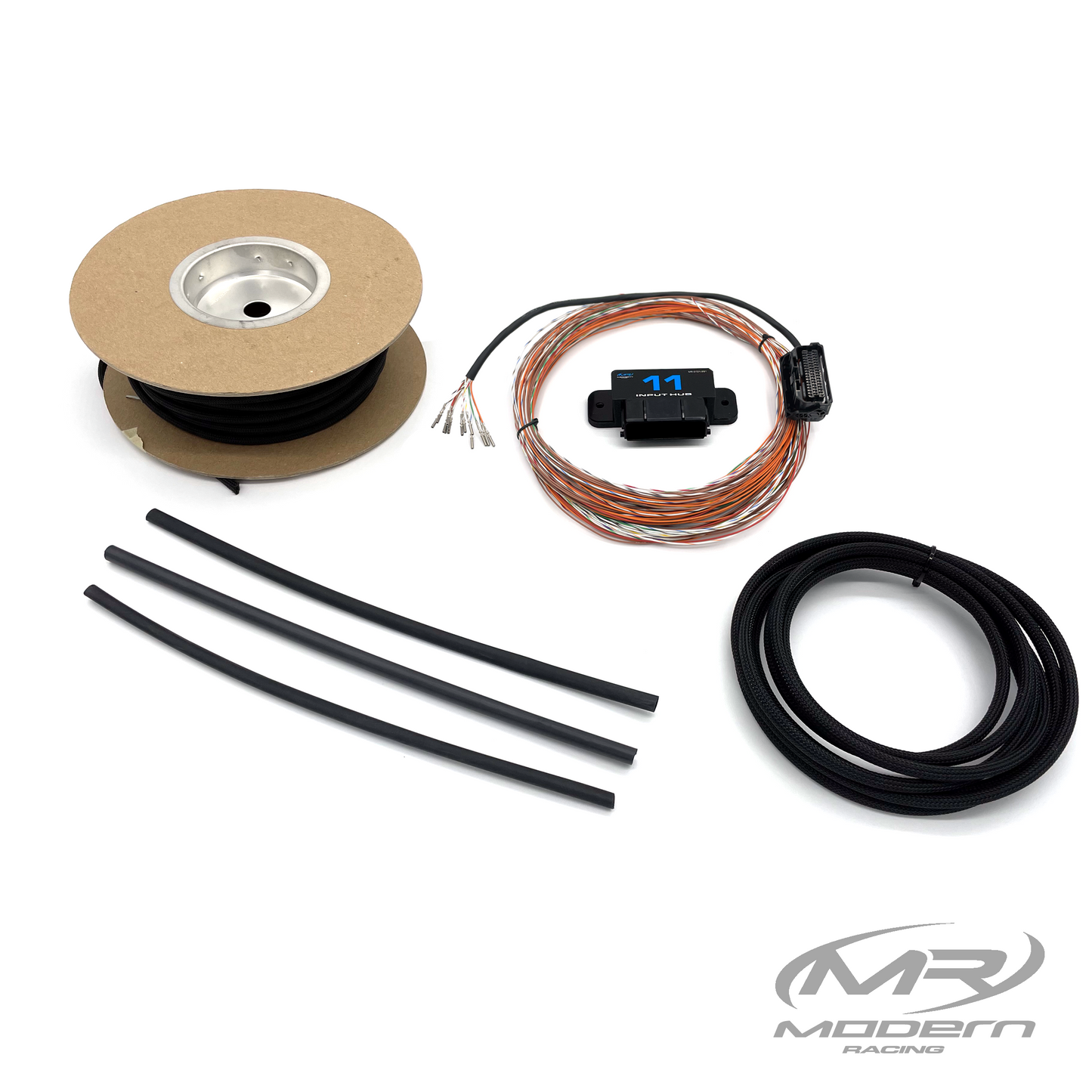

MIL-SPEC WIRE PACKAGE CONTENTS:

-(1x) Input hub

-(1x) Mating connector w/wiring harness (Made with Mil-Spec wire)

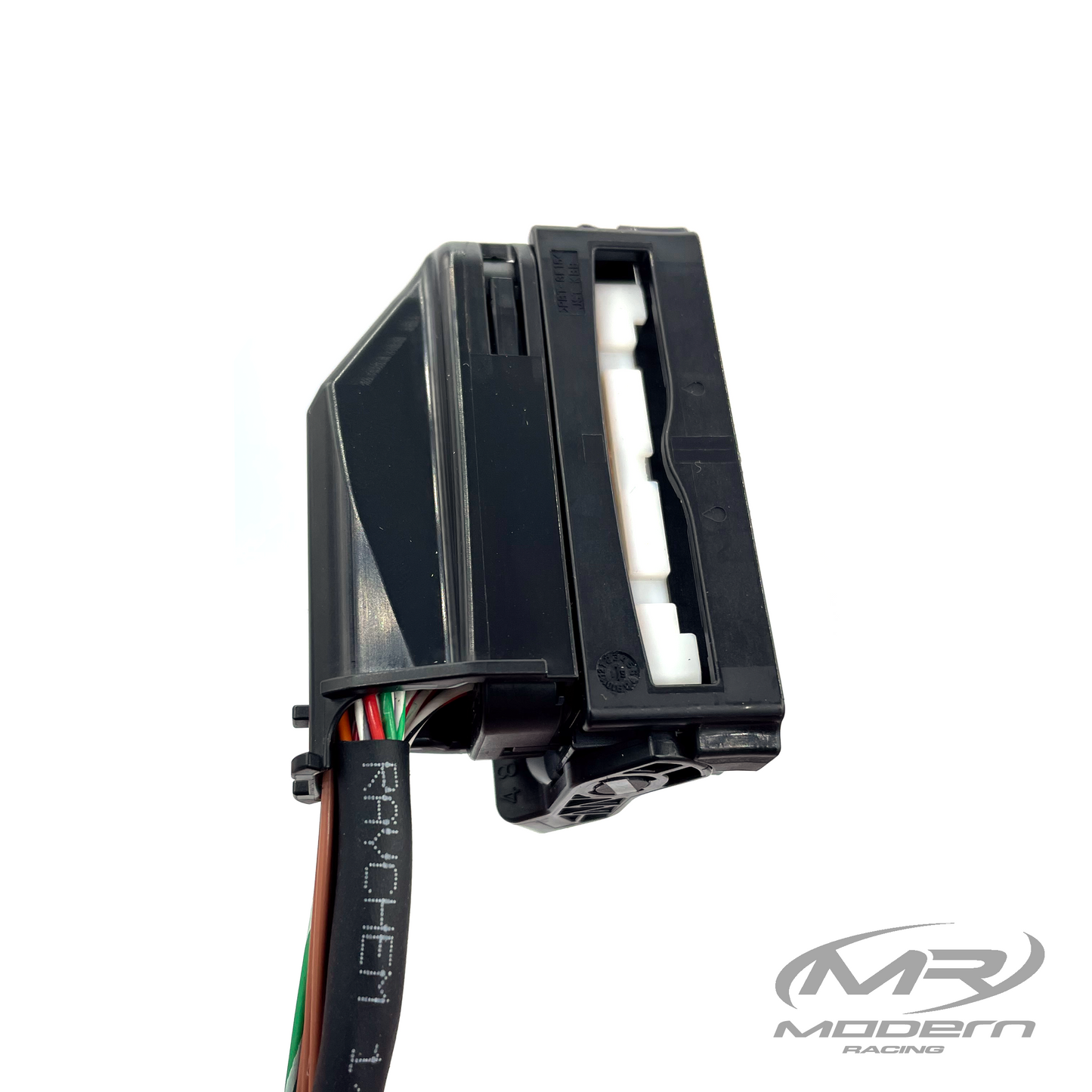

-(1x) 90* Slip-cover backshell

-(1x) Mounting hardware kit

-(2x) 1' Stick of 1/4" soft glueline

-(1x) 1' Stick of 5/16" soft glueline

-(1x) 100' Spool of 1/8" Black no-fray sleeving

-(1x) 10' Spool of 1/4" Black no-fray sleeving
