MR Builder Series 8-Channel Input Hub Kit
This MR Builder Series kit was assembled for the customer who is ready to dig into wiring but wants all of the components our shop uses, all in one easy to order place. This kit revolves around our MR 8-Channel Input Hub, eliminating the need for endless splicing and hours of headaches for the typical DIY’er. Wiring the 8-channel hub expander is as simple as providing one 5v supply and one signal ground! Each kit comes with leads and terminals to wire in your ECU, as well as the option of either a 75' spool of jacketed 3-conductor wire or a Mil-spec wiring package. For those who want the most straight-forward install, you'll love our 3-conductor package. For those who like the extra capacity and smaller size of Mil-spec wire, combined with a unique wire color for each sensor (Makes installation, maintenance, and troubleshooting a breeze!) we'd recommend our Mil-spec package. Once your decision is made, all that’s left to do is wire in your ECU inputs and run wire to your desired sensors. Be sure to look at our MR Installer Series version, if you're looking to make your wiring job even easier!
Be sure to check out our connector section and fill up on the connectors you'll need to finish your project.
SPECS AND FITMENT:
-Body Style: Universal unterminated
HIGHLIGHTS:
-Lightweight
-Universal application
-Built-in sensor ground splice (pre-spliced for 8 outputs)
-Built-in 5v sensor power splice (pre-spliced for up to 8 outputs)

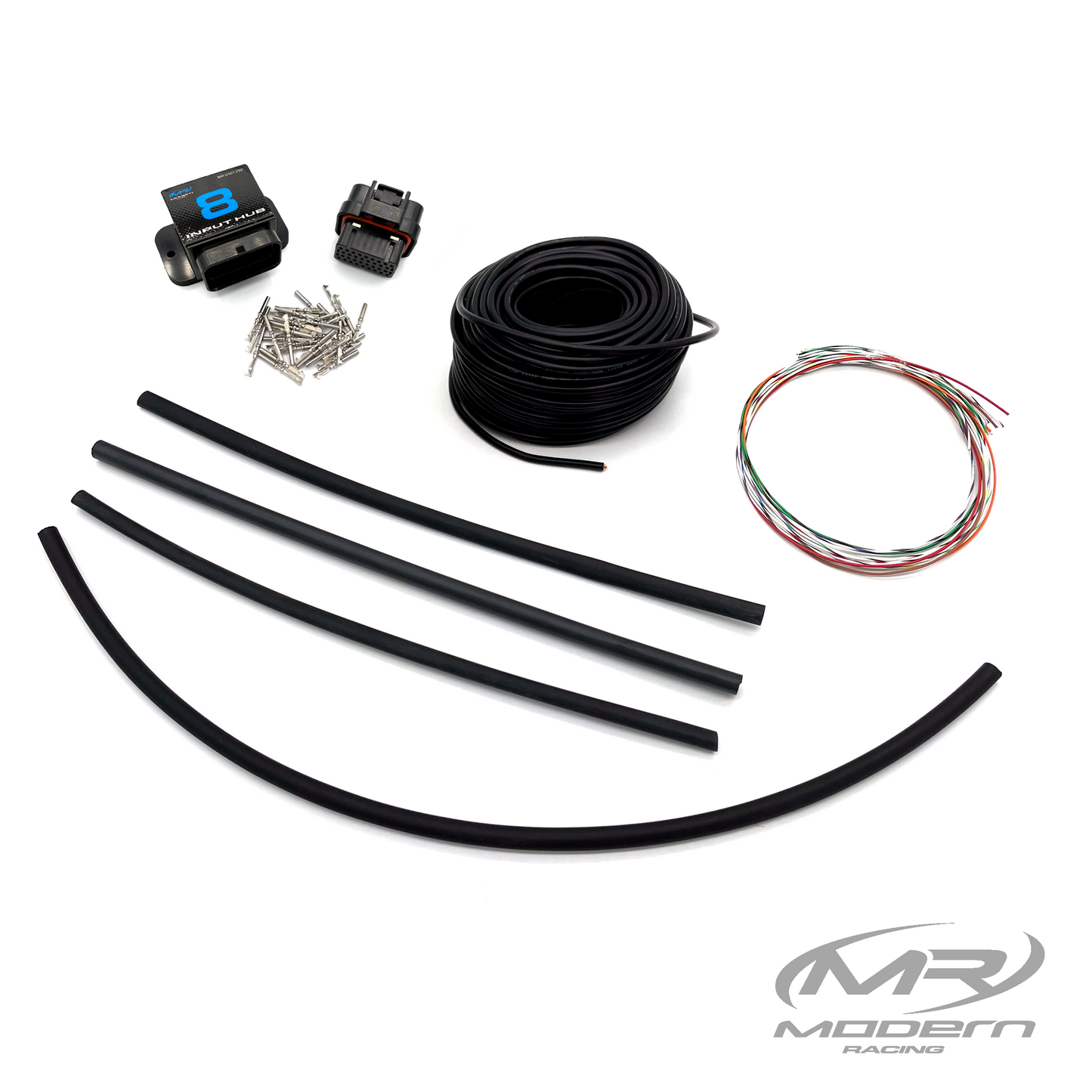

JACKETED 3-CONDUCTOR WIRE PACKAGE CONTENTS:

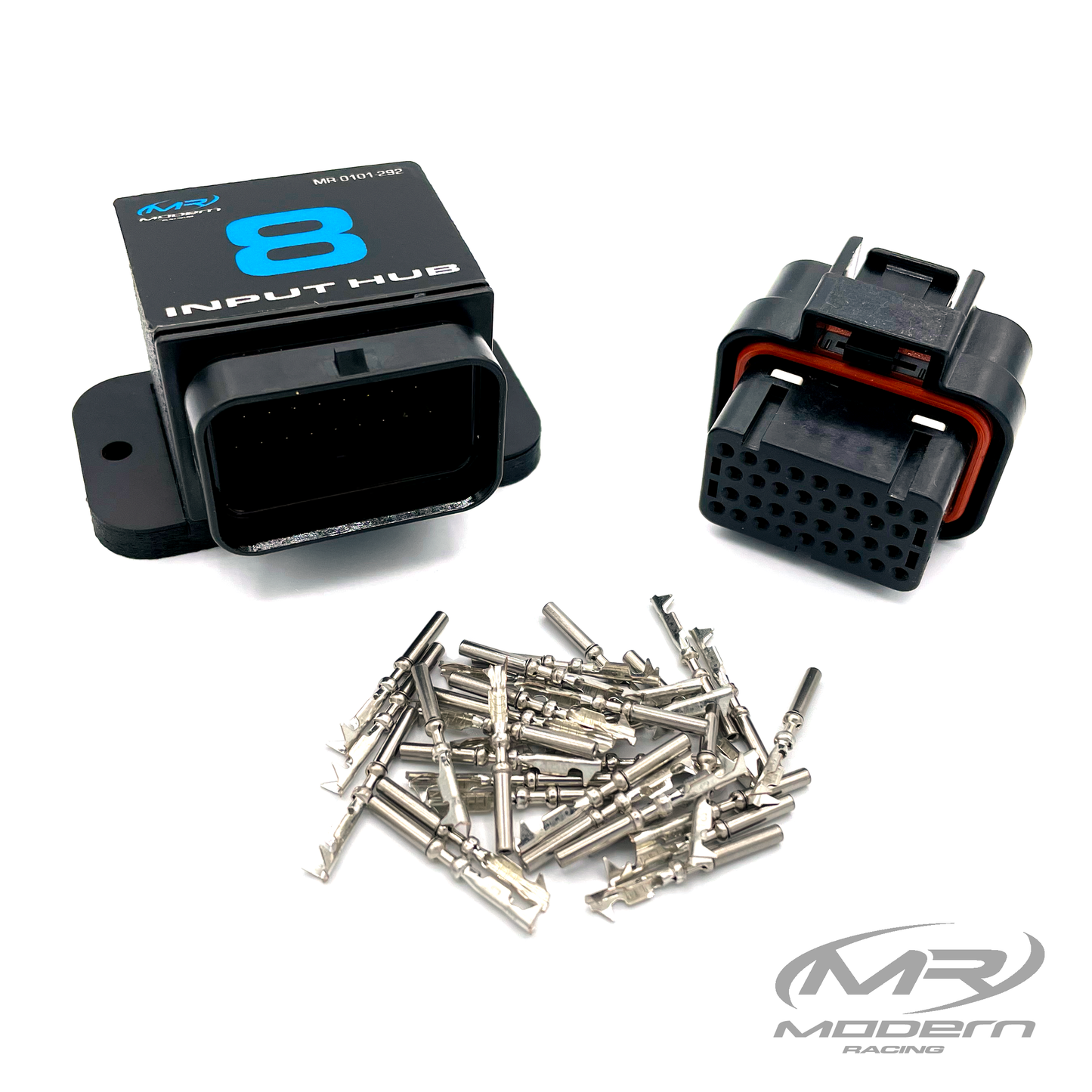

-(1x) Input hub
-(1x) Mating connector with terminals
-(1x) Mounting hardware kit
-(10x) 18" 22AWG Mil-spec leads for ECU inputs (Individual colors)
-(10X) Terminals for common brand ECU Inputs (Holley, FuelTech, etc.)

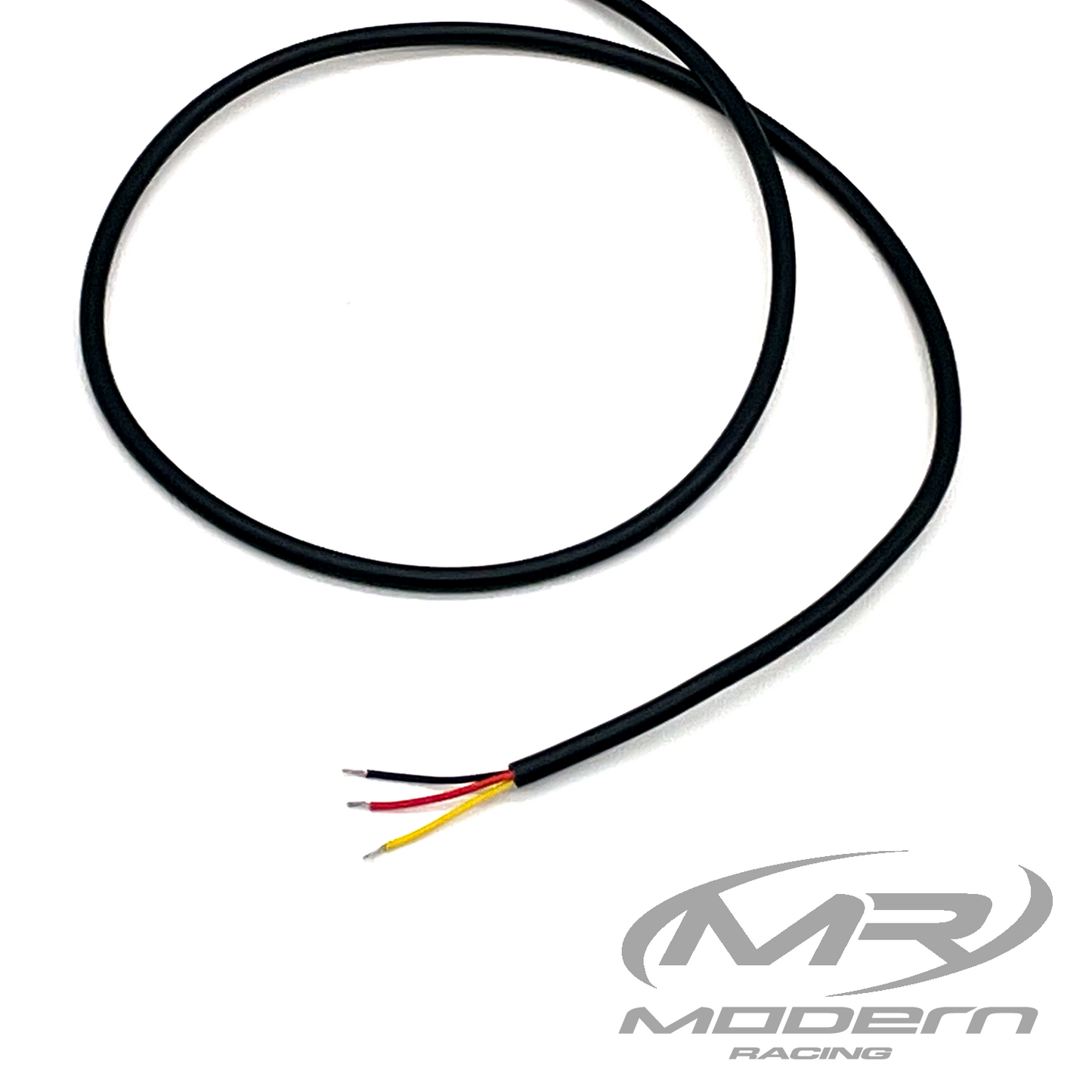

-(1x) 75' spool of 22AWG jacketed 3-conductor wire for sensor inputs
-(1x) 18" Stick of 1/4" DR-25 heat shrink tubing
-(2x) 1' Stick of 1/4" soft glueline
-(1x) 1' Stick of 5/16" soft glueline

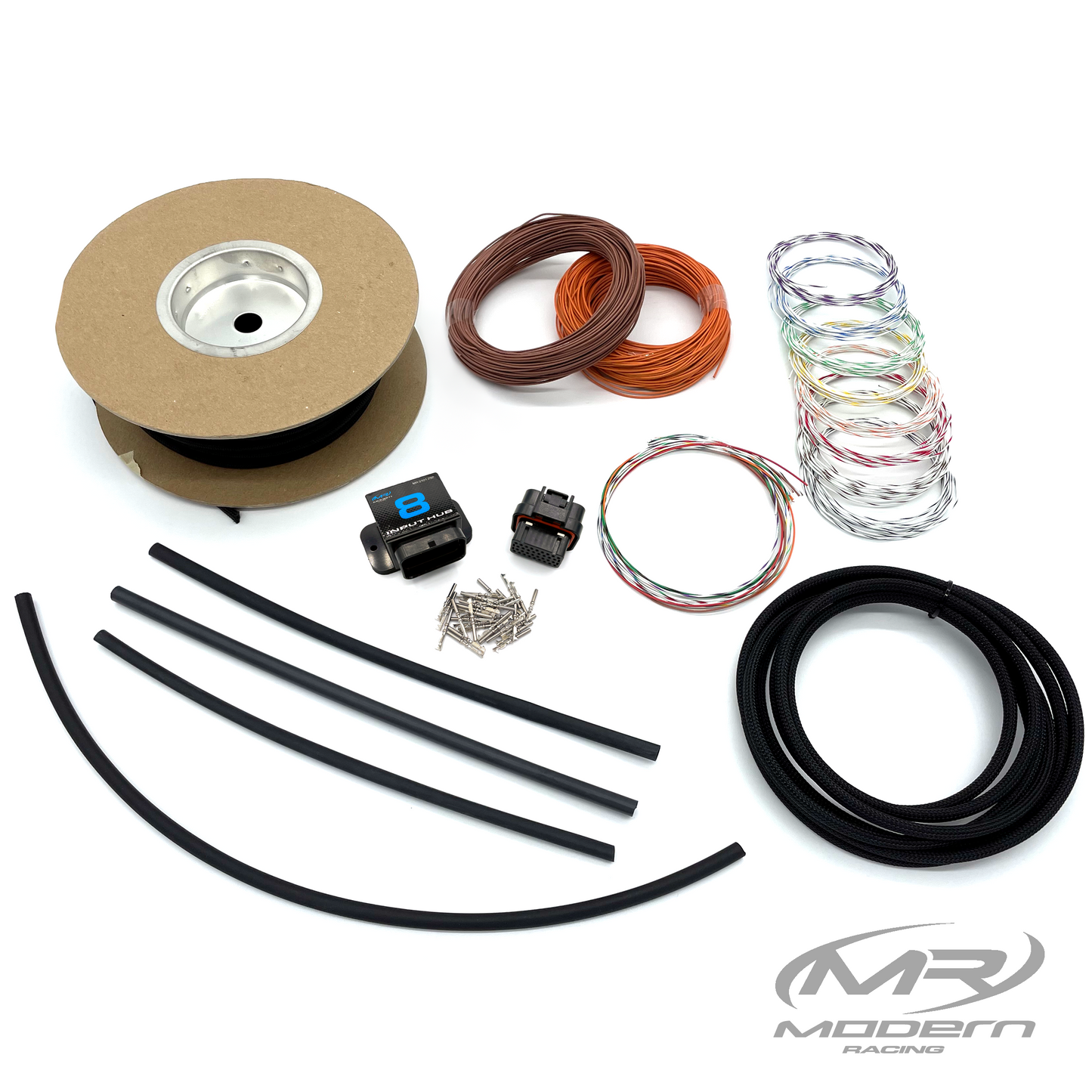

MIL-SPEC WIRE PACKAGE CONTENTS:
-(1x) Input hub
-(1x) Mating connector with pins
-(1x) Mounting hardware kit
-(10x) 18" 22AWG Mil-Spec leads for ECU inputs (Individual colors)
-(10X) Terminals for common brand ECU Inputs (Holley, FuelTech, etc.)

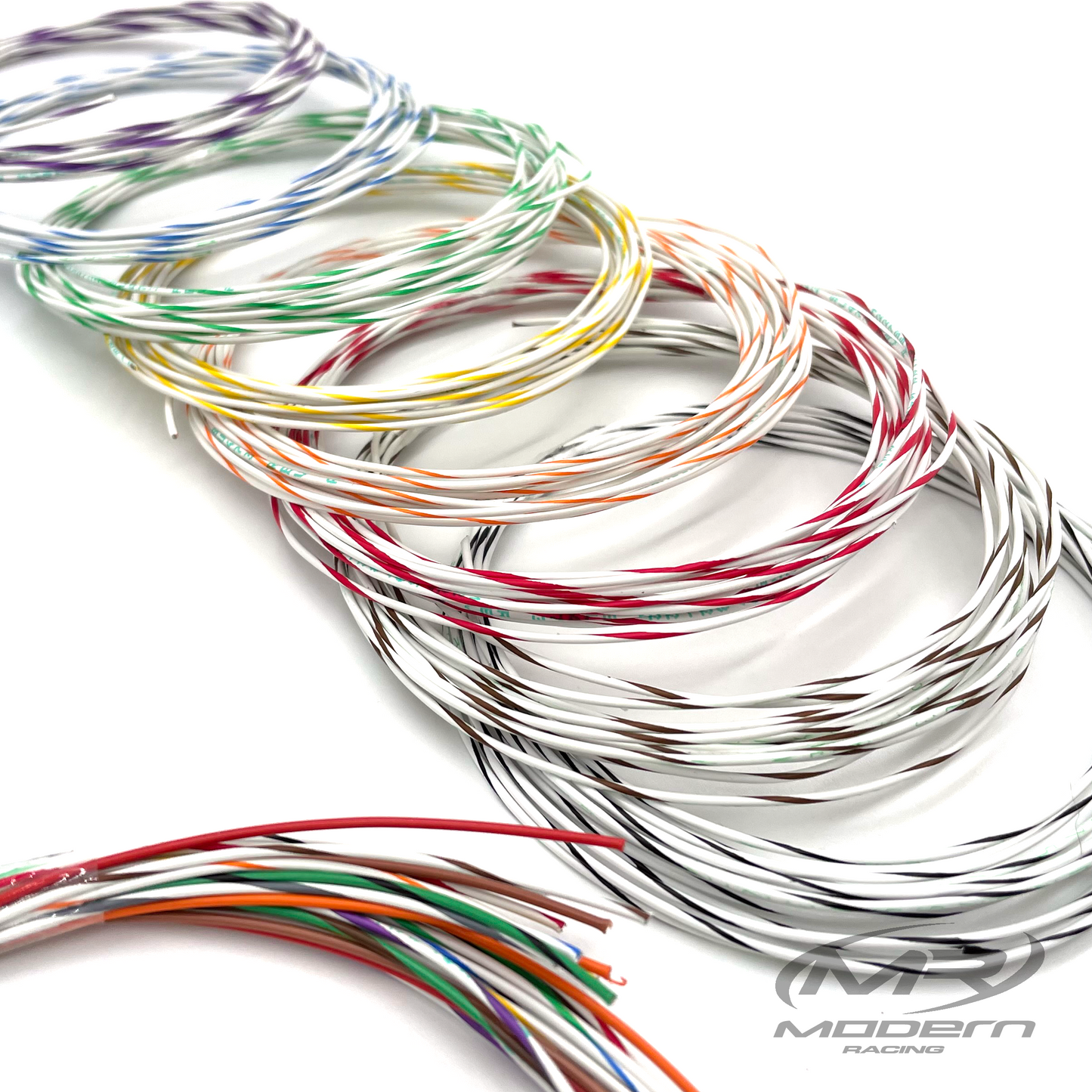

-(8x) 10' 22AWG Mil-spec leads for sensor inputs (Individual colors)
-(1x) 80' Spool of Brown 22AWG Mil-spec wire for sensor ground leads
-(1x) 80' Spool of Orange 22AWG Mil-spec wire for sensor 5v leads
-(1x) 18" Stick of 1/4" DR-25 heat shrink tubing
-(2x) 1' Stick of 1/4" soft glueline
-(1x) 1' Stick of 5/16" soft glueline
-(1x) 80' Spool of 1/8" Black no-fray sleeving
-(1x) 10' Spool of 1/4" Black no-fray sleeving
