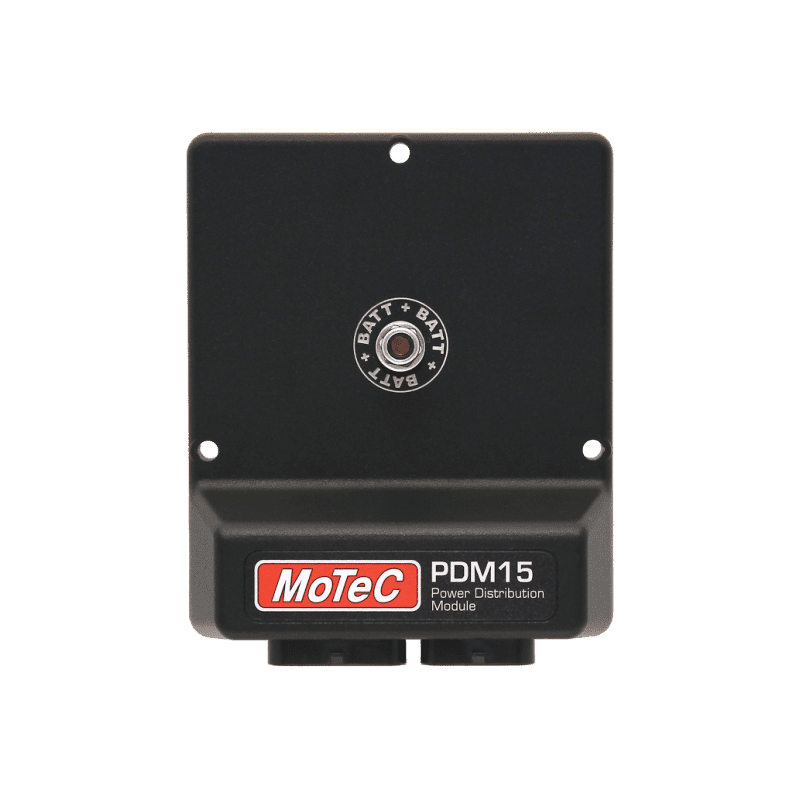

MoTec PDM15 Power Distribution Module

MoTec PDM15 Power Distribution Module

SKU:14104

Regular price $1,980.00 USD
Regular price Sale price $1,980.00 USD
Sale SOLD OUT!

MoTeC’s 15 output Power Distribution Module (PDM15) is designed to provide electronically switched power to the various electrical systems in the vehicle such as motors, lights and solenoids, and electronic devices such as ECUs and data acquisition systems.

The module replaces conventional relays, fuses and circuit breakers, simplifying wiring and reducing weight while increasing reliability.

General Features
Each output is over-current, short circuit and thermal overload protected
Outputs programmable in 1 A steps
Outputs controllable via a combination of switch inputs, CAN messages and logic functions
Switch inputs ranging from 0 to 51 V, resolution 0.2 V
Performing up to 200 logic operations using operators like Flash, Pulse, Set/Reset, Hysteresis, Toggle, And, Or, Less than, Greater than, Not equal to, Equal to, True, False etc.
Performing functions such as flashing indicator lights and controlling thermofan and fuel pump
Using logic functions to selectively turn off systems during low battery voltage or engine starting, reducing drain on the battery
Providing full diagnostic information, including output currents and voltages, input voltages, and error status
Transmitting diagnostic information via CAN to a display or data logging device or monitoring directly on a PC

Outputs
8 x 20 A outputs - 20 A continuous, 115 A transient (typical)
7 x 8 A outputs - 8 A continuous, 60 A transient (typical)

Inputs
16 x Switch inputs

Communications
1 x CAN

Diagnostic Information
Output current and voltages
Input voltages
Error status

Physical
Connectors
-1 x 34 pin waterproof connector
-1 x 26 pin waterproof connector
-1 x M6 stud
Case size 108 x 128 x 39 mm
Weight 260 grams
