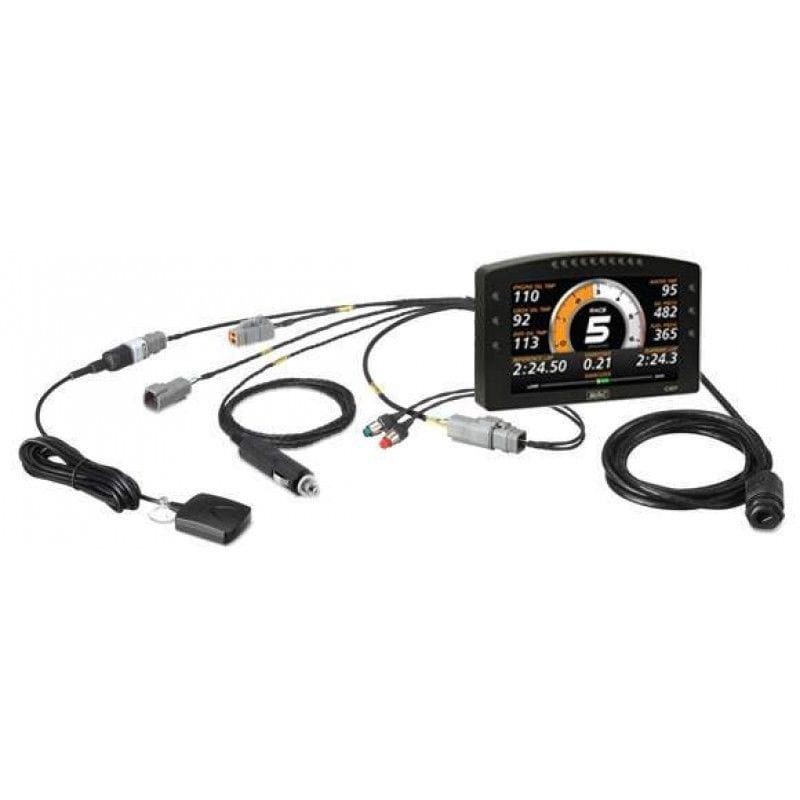

MoTec C127 7" Digital Dash Track Kit

The C127 has been designed with powerful functionality and an impressive, high resolution, full colour screen. Not just a sophisticated display, this device offers data logging, auxiliary control and programmable LEDs all in one streamlined device.

This model now also provides a composite video input as standard (e.g. for a rear vision camera), and USB Logging to a removable storage device as an optional upgrade.*

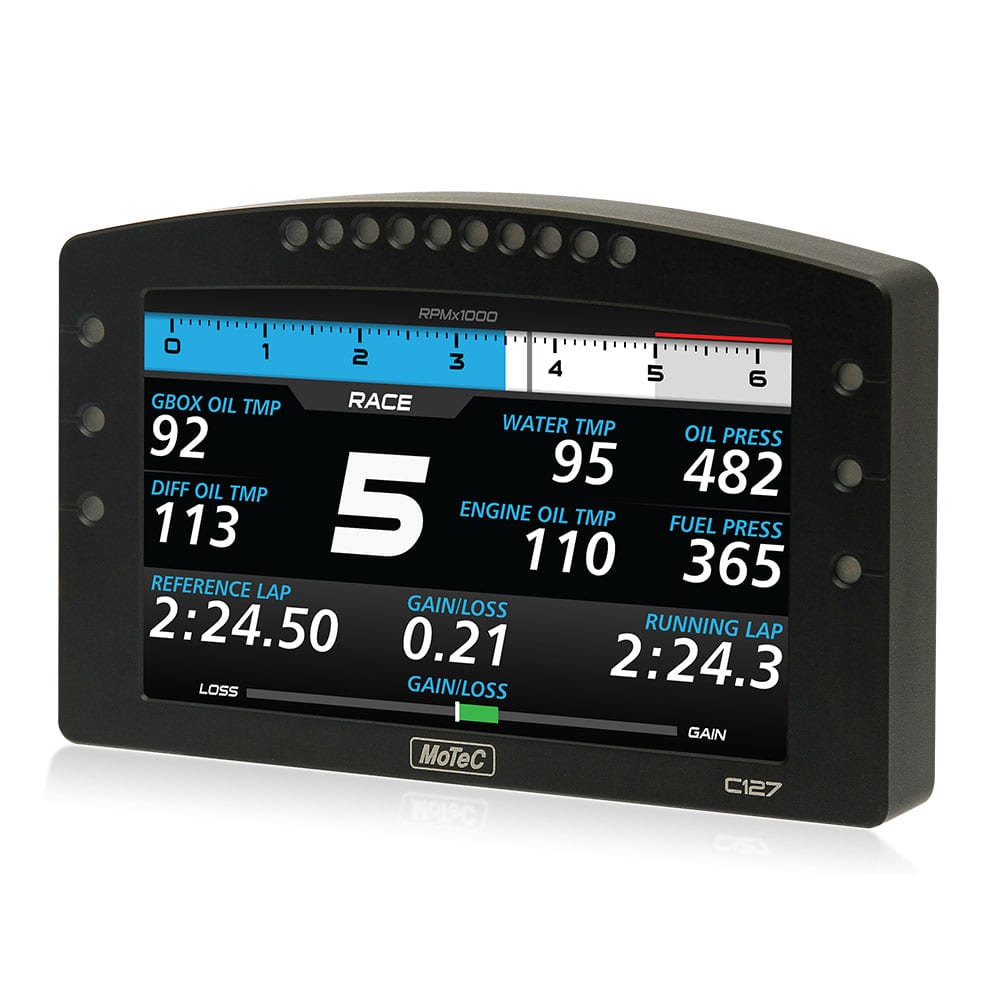

Measuring 176 mm (approx. 7 inches), the ultra bright screen is vibrant and anti-reflective, making it easy to view in direct sunlight. Numerous selectable layouts are supplied with configurable channels, labels and colour schemes. Or, for the flexibility to treat your screen as a blank canvas and design your own layout with unique graphics, sponsor logos, custom icons and gauges, opt for the Display Creator upgrade.

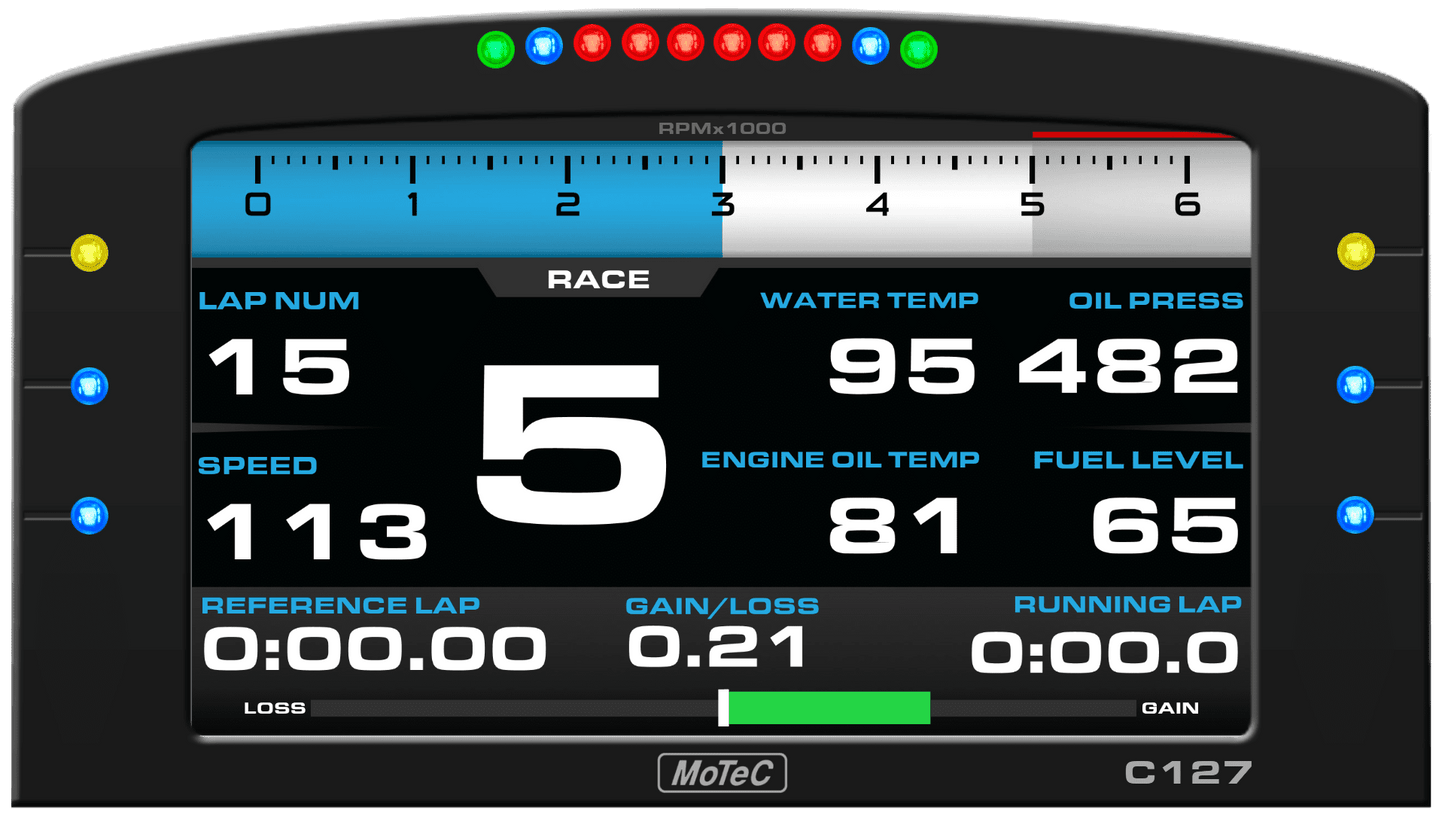

The C127 features 16 full colour LEDs integrated into the unit for use as shift lights, warning lights or other driver alerts. The colour, function and intensity of each LED is programmable, allowing users to develop their own unique strategies and sequences.

The C127 is available standalone or as part of MoTeC's C127 Race Kits.

*Note: USB Logging and Live Video are recently added features that may not be available on devices already purchased. Compatible hardware can be identified by a mini USB port on the back of the unit.

BASIC SPECIFICATIONS

Display
For full customisation of the display layout and graphics add the Display Creator option. See examples.
Screen: Colour TFT LCD, anti-reflective
Resolution: 800 x 480, anti-aliased graphics
Selectable fixed layouts with channel and label configurability
48 user-defined, scrollable message lines with programmable overrides
3 programmable 'pages', for example Practice, Warm-Up, Race

Communications
2 x Configurable CAN buses with individually programmable CAN bus speeds
One can be used as RS232 Receive
RS232: 2 x RS232 ports
One with Transmit and Receive
One with Receive only

Physical
Dimensions 196.2 x 122.5 x 24.9 mm excluding connector
Weight 615 g
1 x 34 pin waterproof connector
1 x mini USB port

Logging (Optional - Requires Logging Upgrade)
Level 1: 120 MB logging memory
Level 2: USB Logging to a removable storage device (flash drive)
32 GB USB storage devices available
requires compatible hardware*
Logging rates up to 500 samples per second
Fast Ethernet download
Includes i2 Standard data analysis software (i2 Pro available as an upgrade)

Inputs
2 x Digital inputs
3 x Speed inputs
1 x Composite Video Input for the connection of a PAL or NTSC camera*

Inputs (Optional - Requires I/O Upgrade)
6 x Analogue voltage inputs
2 x Analogue temperature inputs

Outputs (Optional - Requires I/O Upgrade)
4 x low side outputs
PWM or switched operation

Internal Sensors
3-axis G sensor
Dash temperature sensor
Sensor supply voltage
Battery voltage

Expanders
Compatible with MoTeC E888 and E816 Expanders, providing full functionality.

*Compatible hardware can be identified by a mini USB port on the back of the unit.
