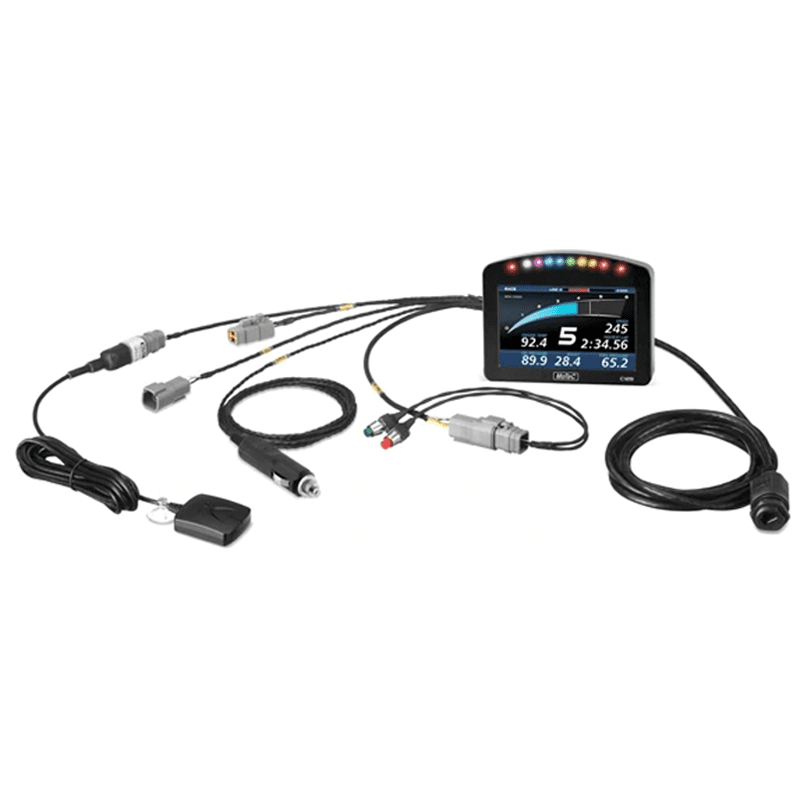

MoTec C125 5" Digital Dash Track Kit
MoTec C125 5" Digital Dash Track Kit

MoTec C125 5" Digital Dash Track Kit

Regular price $2,680.00 $0.00 Unit price per

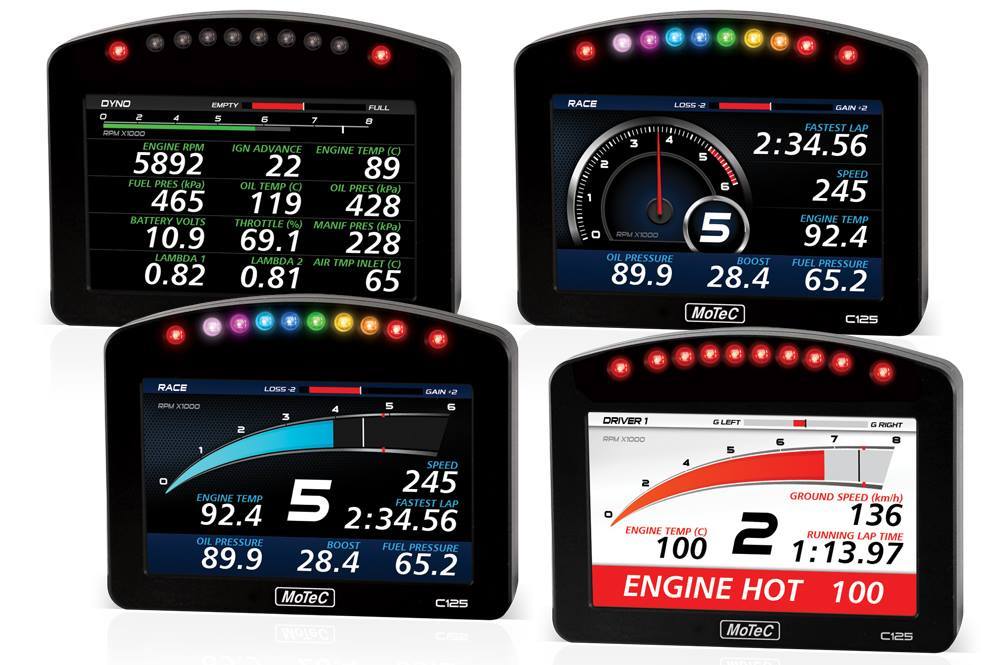

The vivid 125mm screen (approx 5") is high resolution, ultra bright and anti-reflective for easy reading in direct sunlight. Choose from numerous selectable layouts and configure the channels and labels to suit, or opt for the Display Creator upgrade and treat your screen as a blank canvas with unique graphics, images, logos and custom icons. Create multiple pages to suit different scenarios, optimising the screen space for your application.
The C125 also features ten full colour LEDs integrated into the unit for use as shift lights, warning lights or other driver alerts. The colour, function and intensity of each LED is programmable, allowing users to develop their own unique strategies and sequences.

BASIC SPECIFICATIONS
Display
For full customisation of the display layout and graphics, add the Display Creator option. See examples. Screen: Colour TFT LCD, anti-reflective
Resolution: 800 x 480, anti-aliased graphics
Selectable fixed layouts with channel and label configurability
48 user-defined, scrollable message lines with programmable overrides
3 programmable 'pages', for example Practice, Warm-Up, Race

Communications
2 x Configurable CAN buses with individually programmable CAN bus speeds
One can be used as RS232 Receive
RS232: 2 x RS232 ports
One with Transmit and Receive
One with Receive only

Physical
Dimensions 134.5 x 101.8 x 19.4 mm excluding connector
Weight 342 g
1 x 34 pin waterproof connector
1 x Mini USB port
Housing: IP67 rated
Diffused LEDs

Logging (Optional - Requires Logging Upgrade)
Level 1: 120 MB logging memory
Level 2: USB Logging to a removable storage device (flash drive)
32 GB USB storage devices available
requires compatible hardware*
Logging rates up to 500 samples per second
Fast Ethernet download
Includes i2 Standard data analysis software (i2 Pro available as an upgrade)

Inputs
2 x Digital inputs
3 x Speed inputs
1 x Composite Video Input for the connection of a PAL or NTSC camera*

Inputs (Optional - Requires I/O Upgrade)
6 x Analogue voltage inputs
2 x Analogue temperature inputs

Outputs (optional - requires I/O Upgrade)
4 x Low side outputs
PWM or switched operation

Internal Sensors
3-axis G sensor
Dash temperature sensor
Sensor supply voltage
Battery voltage

Expanders
Compatible with MoTeC E888 and E816 Expanders, providing full functionality.

*Compatible hardware can be identified by a mini USB port on the back of the unit
