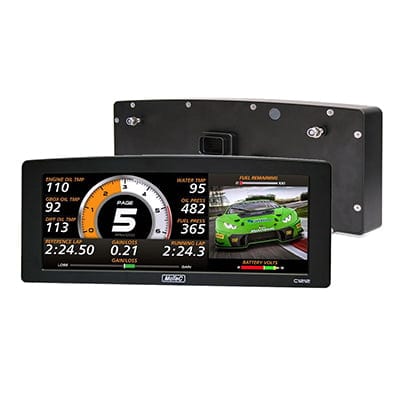

MoTec C1212 12" Digital Dash
The C1212 is a new model in MoTeC's range of Displays and Display Loggers, featuring an impressively generous, high resolution, full colour screen. Stylishly designed with powerful functionality, the C1212 provides all the benefits of a sophisticated display plus data logging and auxiliary control in one streamlined device.
This model also includes a composite video input as standard (e.g. for a rear vision camera), and USB Logging to a removable storage device as an optional upgrade.

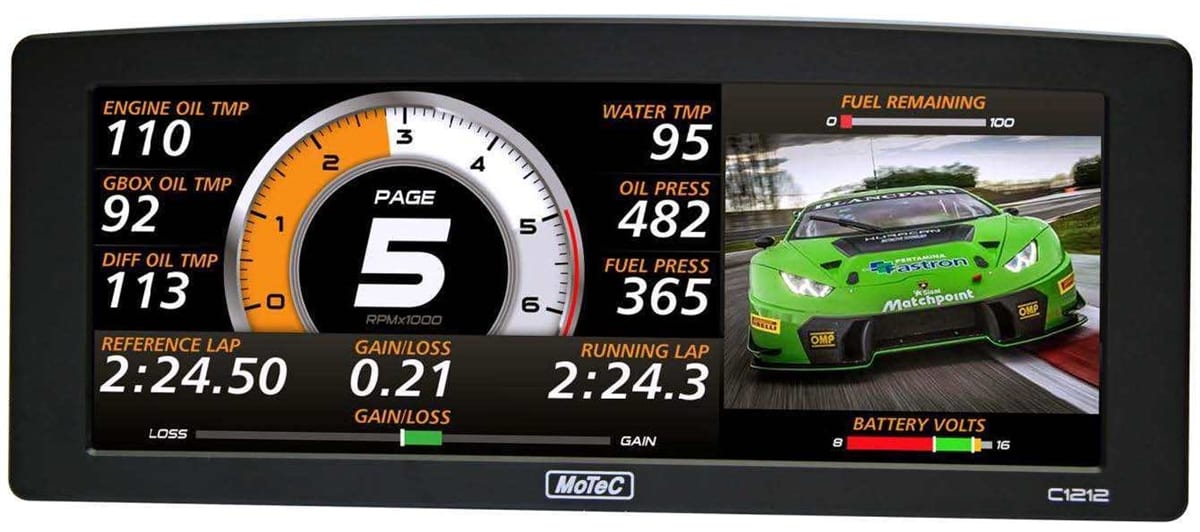

Measuring 311mm (approx. 12 inches), the ultra bright C1212 screen is vibrant and anti-reflective, making it easy to view in direct sunlight. Numerous selectable layouts are supplied with configurable channels, labels and colour schemes. Or, for the flexibility to treat your screen as a blank canvas and design your own layout with unique graphics, sponsor logos, custom icons and gauges, opt for the Display Creator upgrade.
For full customisation of the display layout and graphics add the Display Creator option. See examples.
Screen: Colour TFT LCD, anti-reflective
Resolution: 1280 x 480, anti-aliased graphics
Selectable fixed layouts with channel and label configurability
48 user-defined, scrollable message lines with programmable overrides
3 programmable 'pages', for example Practice, Warm-Up, Race
2 x Configurable CAN buses with individually programmable CAN bus speeds
One can be used as RS232 Receive
RS232: 2 x RS232 ports
One with Transmit and Receive
One with Receive only
Dimensions 340.8 x 147.6 x 34 mm excluding connector
Weight 1.690 kg
1 x 34 pin waterproof connector
1 x mini USB port
Logging (optional - requires Logging Upgrade)
Level 1: 120 MB logging memory
Level 2: USB Logging to a removable storage device (flash drive)
32 GB USB storage devices available
Logging rates up to 500 samples per second
Fast Ethernet download
Includes i2 Standard data analysis software (i2 Pro available as an upgrade)
2 x Digital inputs
3 x Speed inputs
1 x Composite Video Input for the connection of a PAL or NTSC camera
Inputs (optional - requires I/O Upgrade)
6 x Analogue voltage inputs
2 x Analogue temperature inputs
Outputs (optional - requires I/O Upgrade)
4 x low side outputs
PWM or switched operation
3-axis G sensor
Dash temperature sensor
Sensor supply voltage
Compatible with MoTeC E888 and E816 Expanders, providing full functionality.
