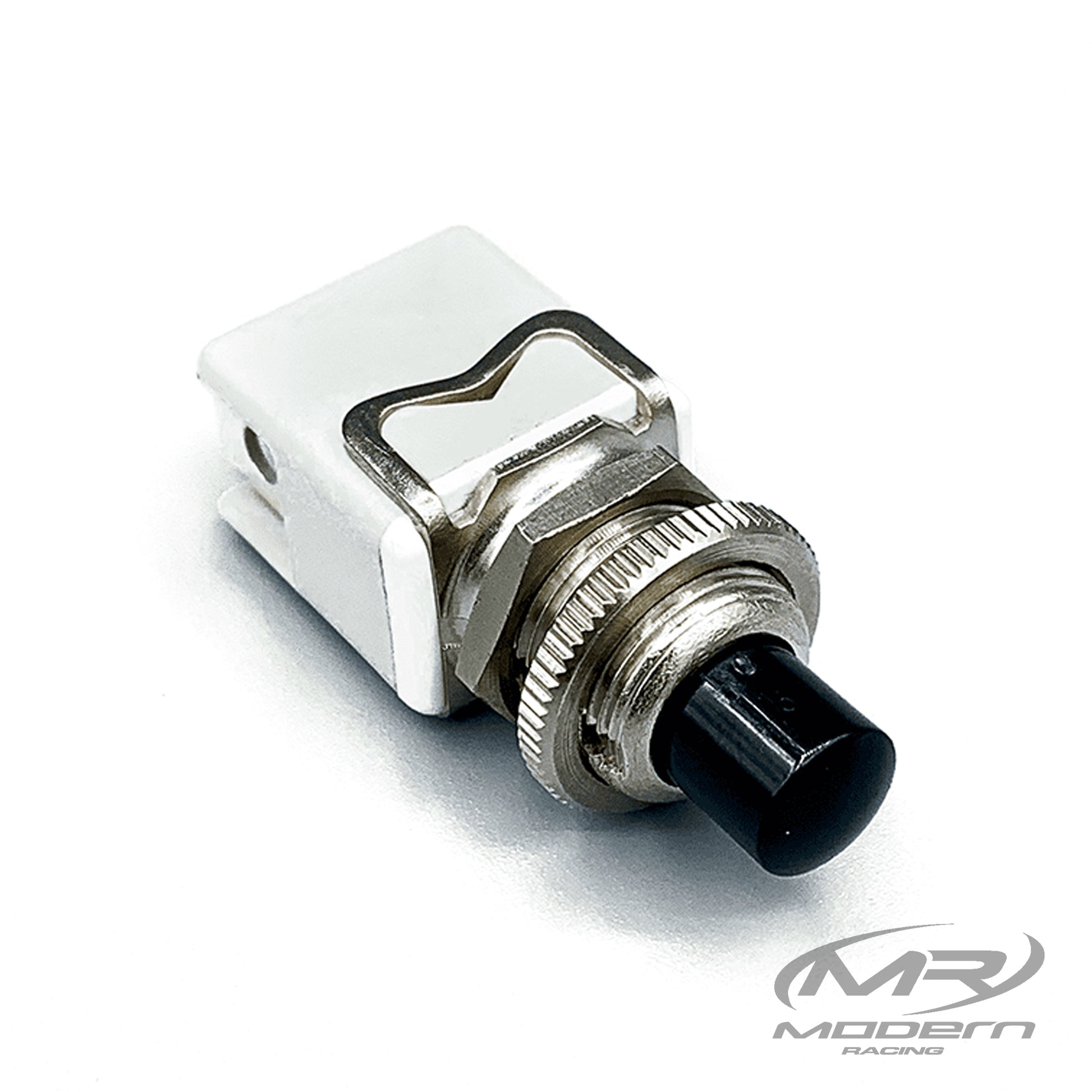

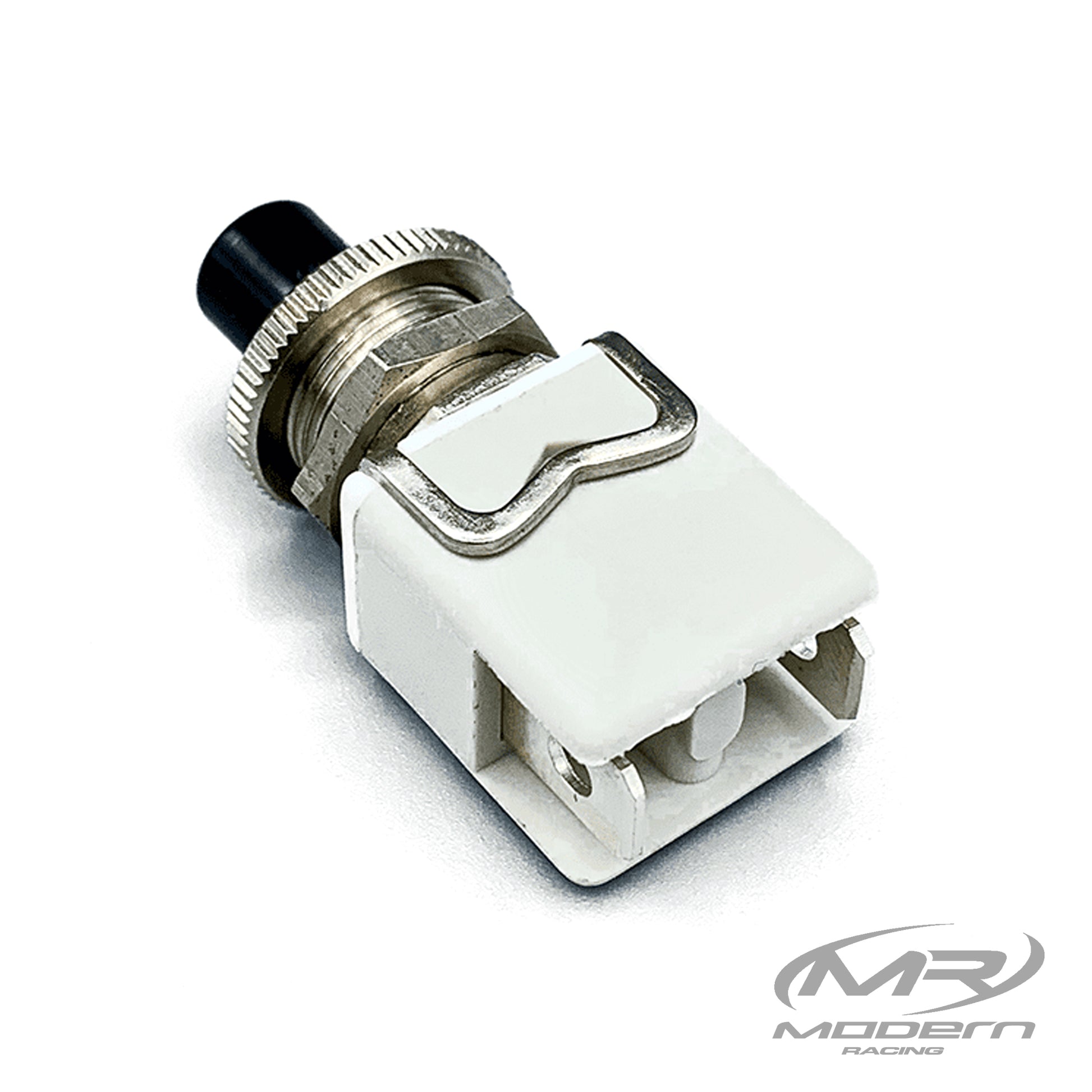

Purge, Push-To-Talk, Page Up Momentary Push Button Switch

One of the most common buttons we use when doing a turn-key build. Commonly used for Nitrous Purge, push-to-talk, page up/down, and many other applications where a small momentary button is useful.

ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load :
- silver contacts (A): 4 A 250 VAC - 8 A 125 VAC - 4 A 24 VDC - 8 A 12 V
- silver plated copper contacts (C): 2 A 250 VAC - 3 A 125 VAC - 2 A 24 VDC - 3 A 12 VDC
• Initial contact resistance : 10 mΩ
• Insulation resistance : 1,000 MΩ min. at 500 VDC
• Dielectric strength : 2,000 Vrms 50 Hz min. between terminals - 3,000 Vrms 50 Hz min. between terminals and frame
• Electrical life : 10,000 cycles at full load

GENERAL SPECIFICATIONS
• Torque : 1.50 Nm (1.10 Ft.lb) max. applied to nut
• Panel thickness : 5 mm (.196) max.
• Total travel : NO : 4.5 mm (.177) ± 0.3 (.011) NC : 3.5 mm (.137) ± 0.3 (.011) DC
• Operating temperature : -20 °C to +55 °C (-4 °F to +131 °F)

MATERIALS
• Case : polyamide
• Plunger : polyamide
• Bushing : brass, nickel plated
• Contacts - A: silver C: copper, silver plated
