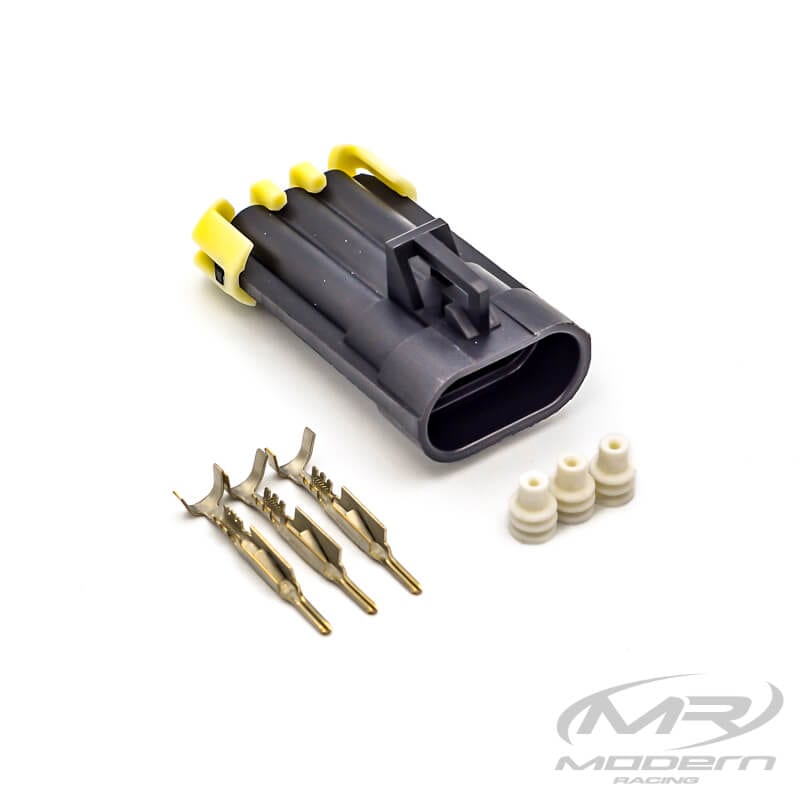

Metripack 3 Pin Female Connector

METRIPACK 3 PIN FEMALE CONNECTOR

The Metri-Pack Series consists of connectors designed to meet or exceed the requirements for most marine, appliance, and industrial control applications. The 150 Series provides small overall dimensions, low energy & low voltage capabilities, and excellent resistance to temperature, chemicals, and abrasion. Metri-Pack 150 Connectors have a 1.5mm blade width, 3.5mm or 6.0mm centerline spacing, 0.35 - 1.0mm cable range, current capabilities from 0 to 14 amps, <10m@ 20mV resistance, <10.0mV/amp voltage drop, and an operating temperature range of -40*C to 125*C.
